Syringe filling and closing machine DNLF01

for vialsfor cartridgesfully-automatic

Product Introduction

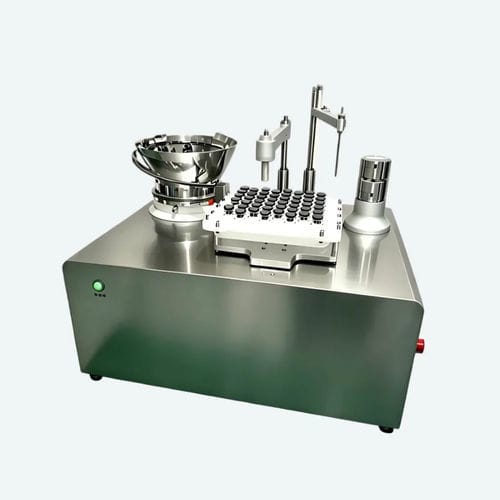

DNLF01 Desktop Nested Liquid Filling & Stoppering Machine is a compact benchtop system that integrates automated liquid filling and stoppering for complete RTU nests. It reduces manual handling and supports aseptic processing, enabling continuous processing of an entire nest with adjustable filling volume and stoppering height.

Key Features
RTU Nest Compatibility

• Compatible with major RTU nest formats for vials, cartridges and prefilled syringes
• Adjustable filling volume and stoppering height to accommodate different container types

Precision Filling & Stoppering

• Fully automated filling and vacuum stoppering for complete RTU nests
• High-precision peristaltic pump enabling fills down to 0.1 mL

Efficient Operation

• Intuitive HMI with fast format changeover
• Recipe management for consistent and repeatable production
• Reduced operator intervention through automation

Aseptic & Data Integrity Compliance

• Construction compatible with GMP Grade A and resistant to VHP (vaporized H2O2)
• 21 CFR Part 11 and GAMP compliant control system with audit trails, batch records, electronic signatures and user management
• PDF report generation, export and printing capabilities

Applications
Designed for high-precision filling and stoppering of vials, cartridges and prefilled syringes in pharmaceutical manufacturing, biotechnology, gene therapy and R&D environments.

Specifications

• Power: 220V 50Hz 2.0 kW
• Filling range: 0.1 mL – 1200 mL/min
• Air supply: clean compressed air, ≥0.5 MPa
• Filling repeatability: ±1% (1 mL fill volume, purified water, ambient temperature)
• Capacity: up to 600 containers/h
• Dimensions: 676 mm × 536 mm × 596 mm (L × W × H)
