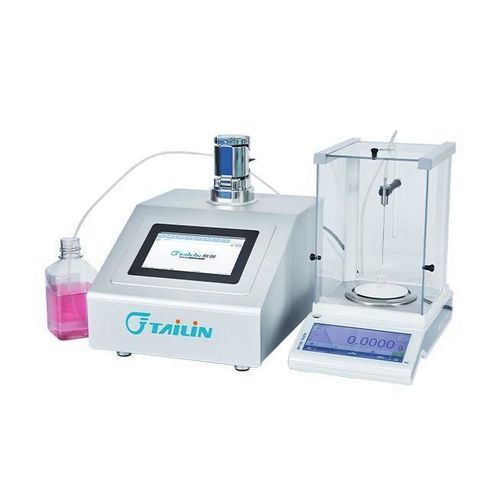

Servo-driven filling machine DLSmart

electronicPC-controllablecompact

Product overview
DLSmart is a compact desktop filling pump designed for high-precision aseptic filling of vials and cryovials. Fully servo-driven with single-turn resolution up to 20 million pulses, it delivers precise, repeatable dosing and rapid dynamic control for demanding pharmaceutical and biotech environments.

Key features

• Compact footprint for integration into isolators and biosafety cabinets.
• Interface for external scales to enable 100% weighing verification.
• Fluid-contact parts in 316L stainless steel and anodized aluminum alloy; resistant to VH2O2 sterilization.
• Compliant with 21 CFR Part 11 and GAMP for electronic records and validation.
• Dual control modes: push‑button and touchscreen operation.
• Multiple communication interfaces for factory automation and data exchange.
• Emptying, dynamic suck‑back and timed filling functions for accurate meniscus control.
• Recipe versioning, audit trail, batch records, e-signatures and user management for GMP workflows.
• Online backup, disaster recovery and PDF report export for traceability.

Applications
Engineered for high-precision filling of vials, cryovials and similar containers in pharmaceutical, biotech and lab production lines, including aseptic and controlled-environment processes.

Technical specifications

• Power supply: 220 V, 50 Hz
• Power consumption: 0.6 kW
• Weight: 20 kg
• Maximum flow rate: 2200 mL/min
• Repeat fill accuracy: ±0.5%
• Filling range: 0.1–2200 mL/min
• Single-turn resolution: up to 20,000,000 pulses
• Dimensions (L × W × H): 370 mm × 296 mm × 350 mm
