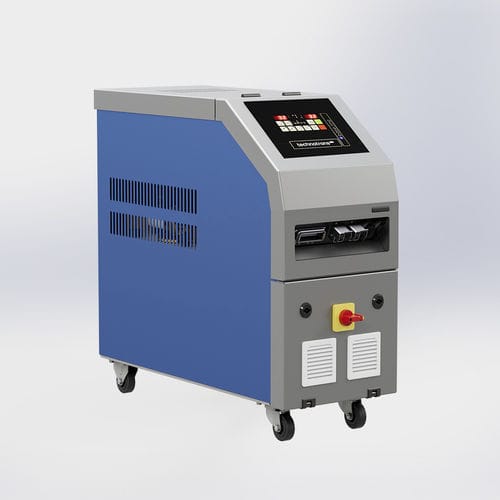

Temperature control unit teco cd base

laboratorywith touchscreen

The space-saving, water-based temperature control units of the teco cd series have been designed with a direct cooling concept. They are the ideal solution for processes that require a higher cooling capacity and for which clean process cooling water is available. Depending on the version, the units can be used for temperatures up to 95°C or 120°C. The units with a modern industrial design represent a high-quality, yet affordable technology, high availability, ease of use and outstanding service friendliness. The base.line product portfolio includes a version with a heating capacity of 9 kW, a user-friendly membrane keypad and 7-segment-display, while the high.line product portfolio includes a version with a heating capacity of up to 18 kW and an innovative logotherm display and operating panel with a 7" multi-touch display. A constant-speed centrifugal pump provides a maximum flow rate of up to 70 l/min. and a feed flow pressure of up to 6 bar. Benefits at a glance Top quality at a cost-optimised price Compact design High control accuracy User-friendly and service-friendly design Numerous equipment options General features and product characteristics "longlife" stainless-steel heating cartridge Wear-free and energy-saving SSR heating control system Medium-wetted parts made of corrosion-resistant materials Good accessibility for maintenance work and interfacing Larger castors for improved handling, Option: small castors with a reduced unit width IP54 control cabinet, clean room class ISO 6 Ready for connection with a 3 m cable and CEE connector
