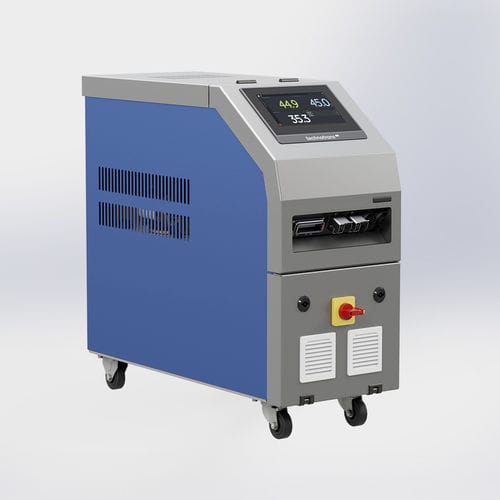

Temperature control unit teco cd high

laboratorywith touchscreen

The temperature control units of the high.line are, in addition to the base.line, the temperature control units of the high.line are also standard units for economical and at the same time particularly convenient temperature control with water at temperatures up to 180 °C and flow rates up to 200 l/min. The high.line series is equipped with the innovative technotrans compactControl controller with a fast 32-bit processor and a 7“ multi-touch display. Advantages at a glance Simple operability Modern equipment Safe and reliable operation Numerous equipment options High flexibility  Simple installation Features and product characteristics • Convenient operation via gesture-enabled logotherm 7“ multi-touch display • compactControl micro controller • Stainless steel „longlife“ heating cartridge with longterm guarantee • Long-life and highly efficient centrifugal pump • „Tankless“ unit for minimum oxygen consumption • Clean room class acc. to ISO 6 • Splash-proof control cabinet acc. to IP 54 • Ready for connection with supply cable and CEE socket • Interface port integrated in front panel (e.g. for optional interface analog, serial, Profibus, Profinet or OPC UA) • Optional external sensor connection • Housing and hood: RAL 7012 basalt gray • Side panels: RAL 260 40 45 LED blue • Customised paint on request
