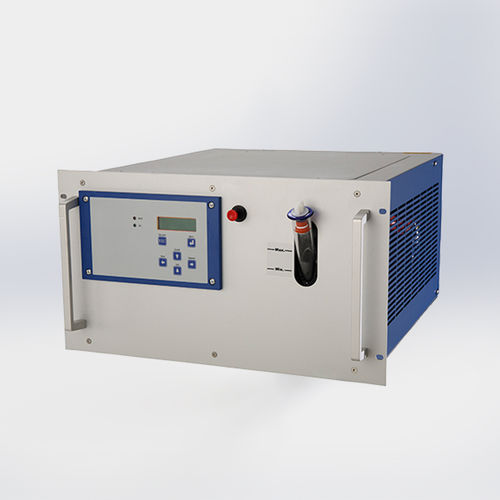

Compact laboratory chiller P300 series

air-cooledwater-cooled

With areas of application ranging from the classic semiconductor industry and laser cooling applications up to its use in medical equipment and laboratories: The active cooling system P300 has already proved to be highly useful in numerous industries. The unit uses a compressor refrigeration circuit that cools either a stainless-steel evaporator coil in the cooling water tank or a plate heat exchanger. Its capacity ranges between 200 W and 3 kW with a temperature stability up to +/- 0.1 K. The central control system of the P300 monitors the water temperature as well as the processes in the refrigerant circuit. A particle filter in the outlet of the cooling unit and a flow sensor in the return flow ensure safe and reliable operation. The heat is dissipated via a fan or transferred to an existing water supply via a heat exchanger for further use. Upon request, the 19" plug-in cooling unit is also available as a desktop unit. Benefits at a glance Extremely high level of temperature stability Low maintenance and high level of operational reliability Monitoring of all of parameters by way of a central control system Energy-efficient solution Features and product characteristics Cooling capacity between 200 W and 3 kW For use with deionised water or with water containing specific additives Flow measurement and monitoring system Adjustable water bypass valve Speed-controlled fan Remote start via a 24 V DC signal RS 232 interface Refrigerant R134a Other optional features include a conductivity measurement system, heater or air filter
