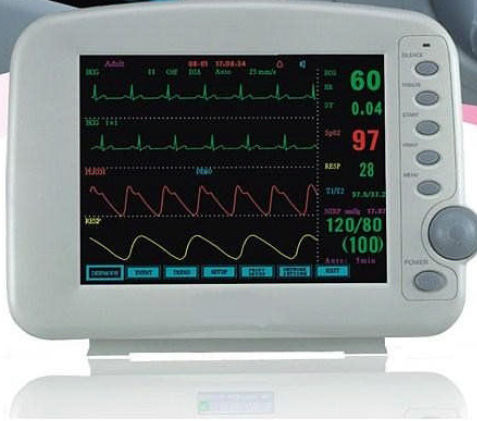

ECG patient monitor TNK-1035
RESPtemperatureNIBP

ECG patient monitor
ECG patient monitor
Add to favorites
Compare this product


Characteristics

Measured parameter
ECG, RESP, temperature, NIBP, IBP, CVP, SpO2
Applications
intensive care, ambulatory, emergency
Configuration
tabletop
Other characteristics
wireless
Screen size

12.1 in

Description

Feature Set •12.1” Color TFT Display with Maximum 7 Waveforms •Optional Multi-language Operation Menu (Spanish Available) •Support Patient Information Input •12-lead ECG Waveforms Display •up to 10 Minutes ECG Replay Capacity •12.1" Color TFT Display with Maximum 7 Waveforms •Two Optional Display Method: Refreshing and Rolling •Various Waveforms can be Flexibly Group and Changed in Color •Power Fail Safeground Function, Capable of Standard Parameters •ECG •Sp02 •NIBP •Respiration •Temperature •Pulse Optional Accessories IBP, EtC02, VCG, Build-in Recorder,Special Accessories for Neonatal and Pediatric Patient Alarm Range: Adjustable from Lower to Upper Limit Cause: Irregular Indication Indications: Audible and Visual Dual Indications Safety In Compliance with IEC6060I Related Standards Power Requirement Voltage: AC 100-240V 50HZ/60HZ IBP (Optional) Channel: Double Channel Pressure Sensor Sensitivity: 5V/mmHg Pressure Name: ART. PA. CVP. RAR. LAP. ICP C02 (Optional) Measure Mode: Bypass Mode Measure Parameter: C02 Breathe-out. Airway HR Recorder (Optional) Type: 50mm Thermal Recorder (Printer) Port: Standard Parallel Printing Setting: Manual Recording, Alarm Recording, Time Recording, Real-time Recording

Catalogs

TNK-1035
TNK-1035
2 Pages
