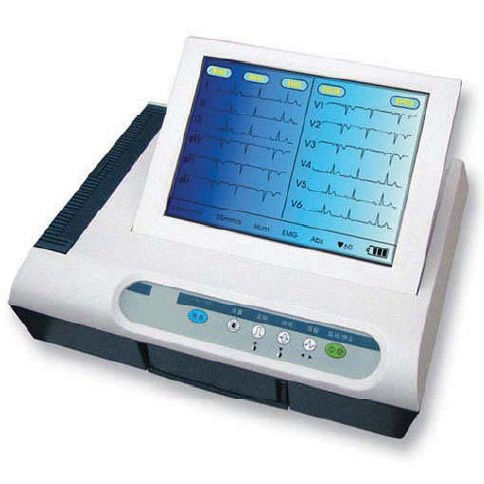

12-channel electrocardiograph TK-1020 digital

12-channel electrocardiograph
12-channel electrocardiograph
Add to favorites
Compare this product
indicative price


Number of channels


TK-1020 (12 channel) Dimension:376mmX300mmX96mm Packing:455mmX380mmX260mm Weight:7.5kg(gross); 4kg(net) Twelve channel with interpretive Build in rechargeable Li battery Chinese/English language Simultaneous 12 leads 320X240 graphic LCD, 10.4 inch screen Paper size: 216mmX20/30m Built in RS232 interface (USB is optional) 128 patients save/copy/communication Specification Items specification Lead standard 12 leads lead acquisition synchronously 12 leads Data acquisition 18bit/1000Hz Record mode Manual mode; AUTO1; AUTO2; AUTO3 Filter AC, EMG Drift Fliter CMMR 100dB(with AC filter) Input circuit Floating; Protection circuit against Defibrillator effect Input circuit current 0.1 A Input Impedance 2.5M Patient current leakage 10 A Calibrating voltage 1mV±2 Voltage tolerance ±500mV Time constant 3.2s Frequency response 0.05 ~150Hz Noise level 15 Vp-p Sensitivity valve 20 V Inter-Channel Interference 0.5mm Paper speed 25 50mm/s(±3 ) Sensitivity AUTO 2.5 5 10 20mm/mV Recording mode Thermal Array printing Paper specification 216mmx30m roll LCD display .TFT color graphic LCD display status&waveform. Safety classification IEC60601-1 class I, type CF Power supply AC 110V/220V/110~230V 50/60Hz±1Hz 45VA DC 14.4V(2000mAh) rechargeable Li-ion battery
