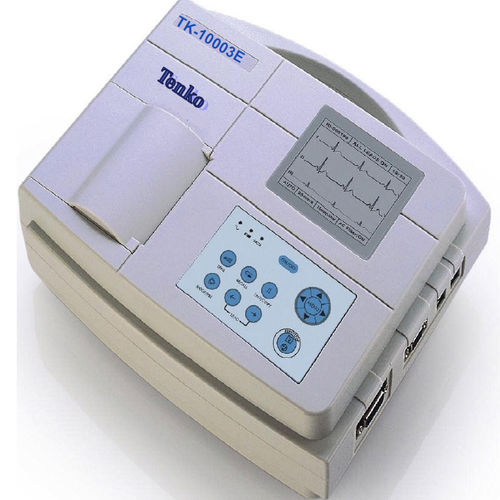

Resting electrocardiograph TK-1003E

12-channel3-channeldigital

ELECTROCARDIOGRAPH Automatic ECG measurement and analysis in Spanish language Complete digital filter to avoid baseline drifting and interfering from AC, EMG Auto - adjusts baseline to optimize printing position Full digital processing Simultaneous 12 - lead acquisition Thermal recorder with high resolution printing Up to 4 - hour battery working time Auto/manual operation mode Lead - off detection and display Selectable printing formats: standard 3 leads, rhythm lead, 3/2 leads, manual 1 lead 100 patient data storage Specification Input Circuit Floating input circuit, protection from Defibrillation and pace maker Lead Standard 12 leads Acquisition Mode 12 leads simultaneously A/D Converter 12 bit Measurement Range > 5mVpp Time Constant 3.2s Frequency Response 0.05Hz ~ 150Hz Calibration Voltage 1mv 3% Sensitivity 2.5, 5, 10, 20 (mm/mV) Input Impedance > 50M Input Circuit Current 50nA Noise Level < 15 Vp-p Anti Baseline Drift Automatic
