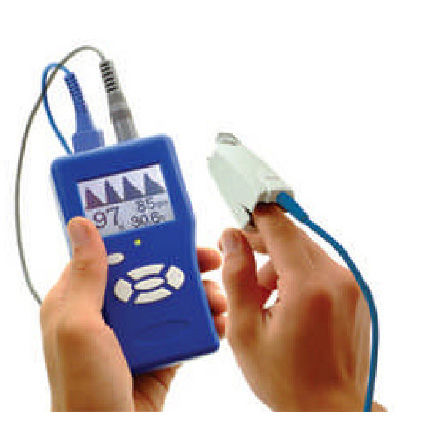

TK-2520
[Features]
•Compact, small, light, easy for carrying and handling;
•LCD display of measurements and PLETH
•Intelligent parameter monitoring interface
•Storage and review of patient’s trend data up to 36 hours which is never lost even when power's off
•Common AA alkaline or rechargeable batteries to support 7 continuous working hours;
•Adjustable audible and visual alarm;
•Battery capacity indicator;
•Patient’s trend can be transmitted to a personal computer for display, saving and printing;
•Automatic power-off;
•Suitable for adult, pediatric, infant and neonate patients;
•Applicable to animals selectively.
•Audio and visual alarm
[Specifications]
Patient Range
Adult, pediatric, infant, neonate patients Sp02
Measurement range: 35~100%
Accuracy: ±2%(70~100%) ,0~69% unspecified Resolution: 1%
Pulse Rate
Measurement range: 30-250 bpm Accuracy: ±2 bpm Resolution: 1bpm Temperature (TEMP)
Channel: 1
Input: surface thermal-sensitive resistor
temperature sensor
Measurement range: 0°C - 50°C
Accuracy: 0.2°C
Resolution: 0.1 °C
Alarm
mode: audio and visual alarm
Setup: User-adjustable high and Low limits Display Mode
LCD screen: 128 x 64 dot matrix homochromy LCD measurements and information display
LED indicator: Red and green Dual-color LED Red LED: insufficient battery power indicator Green LED: pulsating rhythm indicator Environment Requirements Temperature:
Working: 0 - 45 °C
Transport and storage: -20 °C - 60°C
Humidity:
Working: 15 - 95%(non-condensing) Transport and storage: 10 ~ 95%(non-condensing)
Altitude:
Working: 86 KPa - 106 Kpa
Transport and storage: 50KPa - 106 Kpa
Power Requirements
