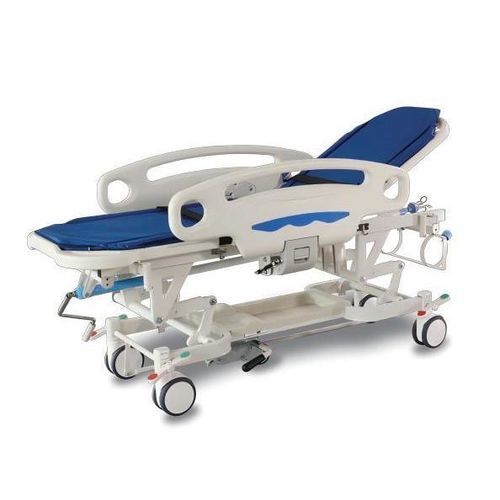

Transport stretcher trolley YK-TS003hydraulicreverse Trendelenburgheight-adjustable
Add to favorites
Compare this product
Characteristics
- Applications
- transport
- Operation
- hydraulic
- Features
- reverse Trendelenburg, height-adjustable, Trendelenburg, with adjustable backrest
- Accessories
- with IV pole, with oxygen cylinder, with side rails
- Other characteristics
- with brake system
- Length
193 cm
(76 in)- Width
70 cm
(28 in)- Height
Max.: 93 cm
(36.6 in)Min.: 63 cm
(24.8 in)- Wheel diameter
200 mm
(7.9 in)
Description
Product overview
Technical specifications
- Patient transport trolley YK-TS003 designed for hospital and clinical use.
- Hydraulic lift system with pump imported from the USA (Actuant); height adjustable 630–930 mm via foot pedals on both sides.
- Backboard adjustable 0–85°; Trendelenburg and reverse tilt 0–12° for patient positioning.
- Construction in imported PP material with ABS foldable guardrails for safe lateral restraint.
- 200 mm dustproof castors including a directional castor; advanced centrally controlled brake system.
- Integrated oxygen cylinder holder at the base, infusion pole and drainage hook for clinical accessories.
- Includes mattress in canvas material, 2 cm thickness.
Technical specifications
- Model: YK-TS003
- Overall size: 1930 x 700 x 630–930 mm
- Backboard adjustable angle: 0–85°
- Height adjustment (Hi-Lo): 630–930 mm
- Trendelenburg / reverse tilting range: 0–12°
- Construction material: imported PP material
- Hydraulic system: pump imported from USA (Actuant)
- Controls: foot pedal controls on both sides
- Brakes: advanced centrally controlled brake system
- Castors: 200 mm dustproof castors; includes directional castor
- Railings: ABS foldable railing
- Accessories: oxygen cylinder holder at base, infusion pole, drainage hook
- Mattress: canvas material, 2 cm thickness
