Transport stretcher YK-TS042

for ambulanceswith adjustable backrestfolding

Product overview

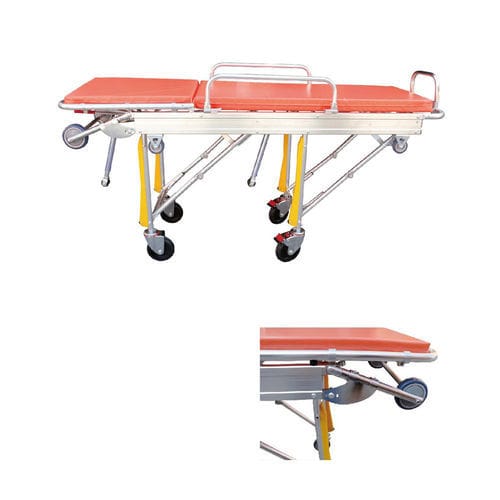

YK-TS042 ambulance stretcher constructed in aluminum alloy with aluminum die-cast fittings. Folding mechanical structure with left and right handle control allows one-person operation to push and load the stretcher into an ambulance. Foam cushion and adjustable backrest up to 75°. Fixed bracket secures the stretcher to the ambulance and locks after sliding into place.

Dimensions & positions

• Top position: 190 × 55 × 92 cm
• Lowest position: 190 × 55 × 26.5 cm
• Packing size: 195 × 62 × 28 cm

Performance & weight

• Maximum backrest inclination: 75°
• Load capacity: ≤ 159 kg
• Net weight: 46 kg
• Gross weight: 52 kg

Technical specifications

• Material: Aluminum alloy
• Fittings: Aluminum die-casting
• Structure: Folding mechanical structure
• Handle control: Left and right handle control for single-person operation
• Cushion: Sponge foam cushion
• Backrest: Adjustable angle (up to 75°)
• Fixing: Fixed bracket secures and locks the stretcher when slid into the ambulance bracket
