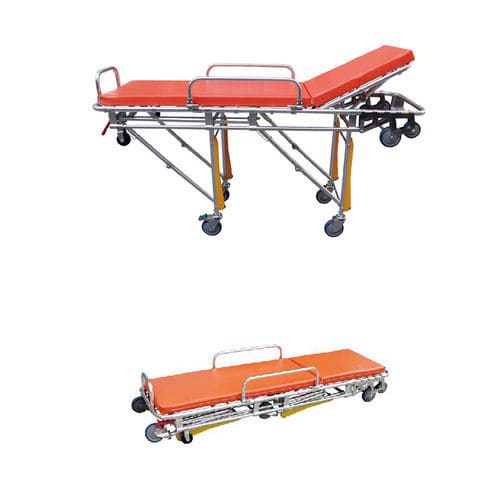

Ambulance stretcher YK-TS037

foldingfoldablewith adjustable backrest

Product description
Aluminum-alloy frame with die-cast aluminum fittings. Folding mechanical structure with left/right handle control allows one operator to deploy, push and secure the stretcher in ambulance service. Sponge cushioning and adjustable backrest support patient positioning up to 75°. The fixed ambulance bracket secures the stretcher on the slide and enables locking once loaded.

Dimensions / Positions

• Raised position: 190×55×92 cm
• Lowest position: 190×55×26 cm
• Maximum backrest angle: 75°

Weight & Load

• Load capacity: ≤159 kg
• Net weight (N.W.): 43 kg
• Gross weight (G.W.): 49 kg
• Packed size: 196×64×31 cm

Technical specifications

• Frame material: aluminum alloy; fittings: aluminum die-casting
• Structure: folding mechanical structure for compact storage and rapid deployment
• Operation: left and right handle control for single-person operation
• Cushion: sponge cushion for patient comfort and support
• Backrest: adjustable up to 75° for patient positioning
• Compatibility: fixed bracket designed to secure stretcher to standard ambulance slide with locking mechanism
• Dimensions and weights as listed above
