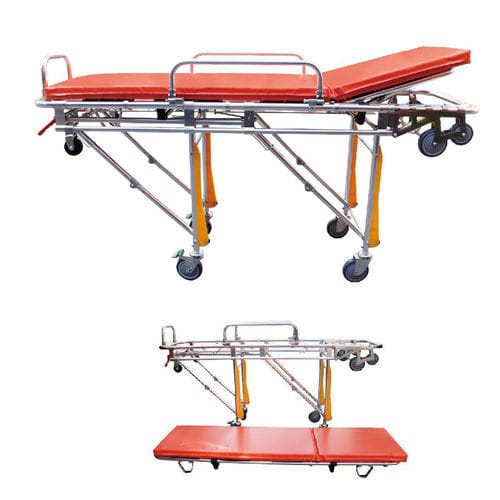

Ambulance stretcher YK-TS039

foldingwith adjustable backrestaluminum

Product description
Stretcher frame made from aluminum alloy with aluminum die-cast fittings. Folding mechanical structure and left/right handle controls enable single-person operation to load and push the stretcher into the ambulance. The stretcher is separable for rapid patient transfer. Includes sponge cushion and an adjustable backrest. A fixed bracket secures the stretcher in the vehicle and the stretcher locks after sliding into position.

Dimensions and positions
Top position: 190 × 55 × 92 cm
Lowest position: 190 × 55 × 26 cm
Maximum backrest inclination: 75°

Weights and capacity
Load bearing capacity: ≤159 kg
Net weight: 43 kg
Gross weight: 49 kg
Packing size: 198 × 63 × 31 cm

Technical specifications

• Material: Aluminum alloy
• Die-cast fittings: Aluminum alloy die-casting
• Structure: Folding mechanical structure
• Control: Left and right handle control for single-person operation
• Separability: Stretcher can be separated for rapid rescue
• Cushion: Sponge cushion; adjustable backrest
• Fixing: Fixed bracket to secure stretcher in ambulance; stretcher locks after sliding into place
• Top position (L × W × H): 190 × 55 × 92 cm
• Lowest position (L × W × H): 190 × 55 × 26 cm
• Maximum backrest inclination: 75°
• Load bearing capacity: ≤159 kg
• Net weight: 43 kg
• Gross weight: 49 kg
• Packing size: 198 × 63 × 31 cm
