MRI stretcher trolley YK-TS038

patient transfertransportwith adjustable backrest

Product overview

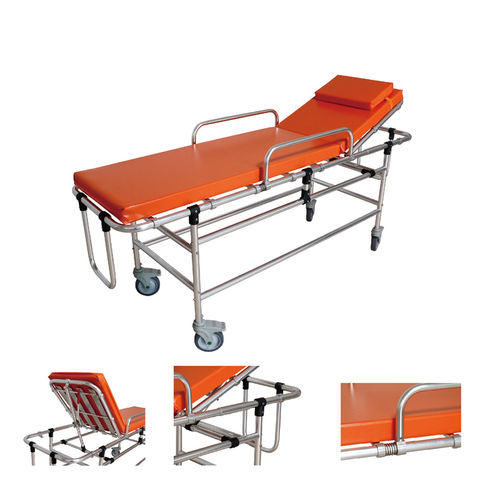

Designed for patient transfer in clinical environments, the YK-TS038 patient transport trolley is manufactured in high-quality aluminum alloy for a lightweight, rigid structure. The head section is adjustable with a sponge cushion to optimize patient comfort. Fixed handrails at both ends facilitate safe lifting and handling. The side protective barriers use a rotary elastic locking mechanism: they can be raised to secure the patient or lowered to allow easy loading and unloading. A safety belt is supplied for additional patient restraint when required. The low-profile frame enables movement across the floor and can be elevated for transport; an IV pole can be fitted as an accessory. The trolley is fully non-magnetic and suitable for use in MRI rooms.

Technical specifications

• Material: High-quality aluminum alloy
• Structure: Lightweight and flexible
• Headrest: Adjustable with sponge cushion
• Handrails: At both ends for lifting
• Protective barrier: Rotary elastic locking device; raised for safety or lowered for access
• Safety belt: Included
• Frame: Low-profile; movable and liftable for transport
• Accessories: Compatible with infusion/IV frame
• MRI compatibility: Non-magnetic; suitable for MRI rooms
• Expanded dimensions: 190×55×75 cm
• Net weight (N.W.): 26 kg
• Gross weight (G.W.): 32 kg
• Back maximum inclination: 75°
• Packing size: 196×64×64 cm
