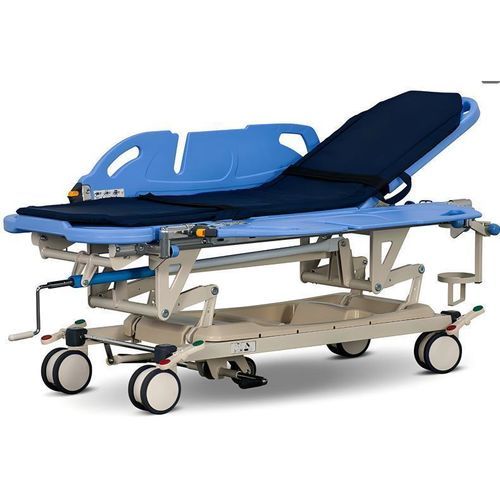

Convertible stretcher YK-TS004on casterswith adjustable backrestheight-adjustable
Add to favorites
Compare this product
Characteristics
- Type
- convertible
- Functioning
- on casters, height-adjustable, with adjustable backrest
- Material
- aluminum, stainless steel, plastic
- Other characteristics
- 3-section
- Length
193 cm
(75.98 in)- Width
64.5 cm
(25.39 in)- Height
Min.: 51 cm
(20.08 in)Max.: 85 cm
(33.46 in)- Loading capacity
10 kg
(22.05 lb)
Description
Technical configuration
Features / technical specifications
- Dimensions: 1930 mm × 645 mm; Height adjustable: 510–850 mm
- Function: backrest 0–70°; HI-LOW: 510–850 mm
- Bed board: PP resin integrated molding
- Frame: aluminum alloy pressing and high-quality steel
- Surface material: polyester
- Inner core: polyurethane foam
- Casters: double-sided, 150 mm diameter resin casters with central lock and lock pedals on four corners
- Conversion mechanism: lever-operated conversion between "straight" and "free" modes
- Direction control: easier to control in "straight" mode; double lock on foot side to prevent incorrect operation
- Cover: high-tech waterproof, anti-static, washable fabric
- Sections: three-section design enabling single-person patient transfer
- Side rails: can be fixed horizontally for drip/puncture; loading capacity 10 kg
Features / technical specifications
- Dimensions: 1930 mm x 645 mm
- Height range: 510–850 mm
- Backrest angle: 0–70°
- Bed board material: PP resin (integrated molding)
- Frame: aluminum alloy pressing + high-quality steel components
- Surface: polyester
- Core: polyurethane foam
- Casters: double-sided resin, Ø 150 mm, central lock and corner lock pedals
- Conversion: lever-operated straight/free; double lock on foot side for safety
- Cover: waterproof, anti-static, washable fabric
- Design: three-section for single-operator transfer
- Side rails load capacity for drip/puncture: 10 kg
