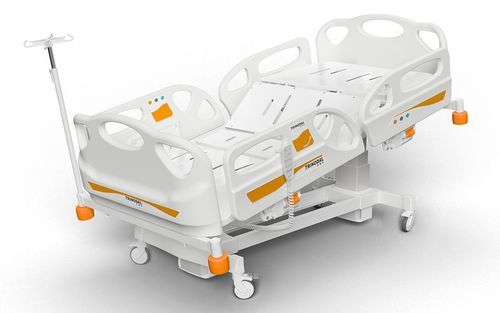

Hospital bed DE 4010 CORE

electricTrendelenburgreverse Trendelenburg

Product Overview
The DE 4010 CORE is a fully motorized electric hospital bed with advanced column motor technology, designed for hospitals, recovery units and long-term care facilities that require safe, durable and efficient patient handling. The bed provides electric backrest, knee-rest, height adjustment, Trendelenburg and Reverse Trendelenburg movements via a four-motor column lifting system to support smooth patient positioning and stable caregiver operation.

Key Features

• 4-motor adult hospital bed
• Backrest, knee-rest, height adjustment, Trendelenburg and Reverse Trendelenburg (5 functions)
• Auto-regression backrest system (10 cm) to improve patient comfort during backrest adjustment
• Epoxy powder coated steel frame
• Removable antibacterial HDPP (polypropylene) side rails and bed ends
• Patented side rail mechanism
• Drainage bag hooks on both sides
• Protective plastic corner bumpers
• Height-adjustable and removable IV pole
• Angle indicators on head and foot side rails
• Handheld remote control panel
• Metal mattress platform
• Ø125 mm cross-lockable castors
• Protective earth and equipotential connection

Technical Dimensions

• External dimensions: 1080 x 2200 mm
• Bed surface: 900 x 2000 mm
• Back-rest angle: 0° – 75°
• Knee-rest angle: 0° – 45°
• Height adjustment (to mattress platform): Min. 460 mm, Max. 810 mm
• Trendelenburg/Reverse Trendelenburg angle: ±16°
• Standard weight capacity: 250 kg
• Cross-lockable castors: Ø125 mm
• IP protection: IPX6
• Power supply: Max. 350 W / 100–240 V ~ 50–60 Hz

Optional Parts

• Manual CPR
• Stainless steel IV pole
• Trapeze bar for patient lift
• Traction unit

Technical Specifications

• Model: DE 4010 CORE
• Motorization: 4 electric motors with column lifting system
• Functions: Backrest, Knee-rest, Height Adjustment, Trendelenburg, Reverse Trendelenburg (5 functions)
• Auto-regression backrest travel: 10 cm
• Frame: Epoxy powder coated steel
• Side rails & bed ends: Removable antibacterial HDPP (polypropylene)
• Mattress platform: Metal
• Castors: Ø125 mm cross-lockable
• IP rating: IPX6
• Power: Max. 350 W, 100–240 V ~ 50–60 Hz
• Standard weight capacity: 250 kg
