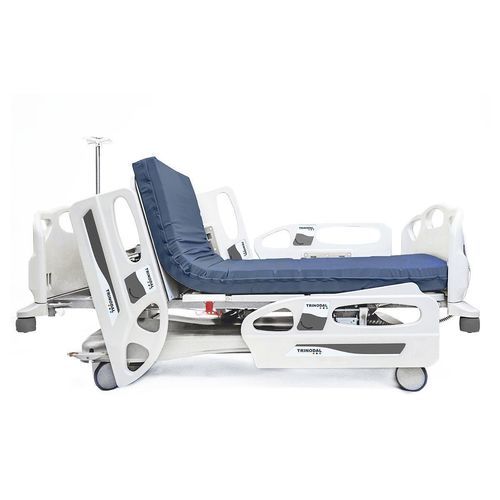

Intensive care bed DE 4030 PRO

hospitalelectricTrendelenburg

Product Overview
The DE 4030 PRO is a fully motorized electric ICU hospital bed designed for hospitals, recovery units and high‑dependency care areas requiring precise patient positioning, clinical efficiency and caregiver control. Four electric motors deliver five functional movements: backrest, knee‑rest, height adjustment, Trendelenburg and reverse Trendelenburg. A detachable nurse control panel provides full access including patient evacuation and one‑touch CPR positioning; selective locking disables patient‑accessible controls for enhanced safety. The bed features a removable antibacterial ABS mattress platform and an HPL X‑ray translucent backrest with integrated X‑ray cassette holder to enable imaging without patient transfer. Constructed with an epoxy‑coated metal frame, polypropylene side rails and removable bed ends, the design integrates protective corner bumpers, manual CPR release, 18 cm bed extension, Ø150 mm central lockable castors and angle indicators on inner and outer side rails to support emergency interventions and everyday clinical use.

Key Features

• 4‑motor electric adult hospital bed
• Five movements: backrest, knee‑rest, height, Trendelenburg and reverse Trendelenburg
• Auto regression backrest system (10 cm) for improved patient comfort during adjustment
• Epoxy‑coated metal frame for durability and hygiene
• Polypropylene side rails and bed ends with patented side rail mechanism
• Drainage bag hooks on both sides
• Protective plastic corner bumpers
• Height‑adjustable, removable I.V. pole
• Angle indicators on head and foot side rails
• Hand remote for patient functions
• Detachable nurse control panel with patient evacuation and one‑touch CPR; advanced locking to disable patient controls
• HPL X‑ray translucent backrest section with cassette holder
• Removable antibacterial ABS mattress platform parts
• Manual CPR release mechanism
• Bed extension up to 18 cm
• Ø150 mm central lockable castors
• Protective earth and equipotential connection

Technical Dimensions

• Mattress platform: 900 x 2000 mm
• Height (without mattress): 480–830 mm
• External dimension: 1080 x 2200 mm
• Back‑rest angle: 0–70°
• Knee‑rest angle: 0–45°
• Footrest angle: 0–30°
• Trendelenburg / Reverse Trendelenburg: ±16°
• Central lockable castor diameter: Ø150 mm
• Safe working load (SWL): 250 kg
• Liquid ingress protection: IPX6
• Power: Max. 350 W, 100–240 V ~ 50/60 Hz
• Electrical shock protection: Class I

Optional Parts

• Stainless steel I.V. pole
• Trapeze bar for patient assistance
• Semi‑automatic foot section (0–30°) to parallel
• Traction unit

Technical Specifications

• Model: DE 4030 PRO
• Type: Column‑motorized electronic hospital bed for ICU / high‑dependency care
• Motorized functions: backrest, knee‑rest, height, Trendelenburg & reverse Trendelenburg
• Materials: epoxy‑coated metal frame; polypropylene side rails/bed ends; HPL X‑ray translucent backrest; removable antibacterial ABS mattress platform
• Controls: hand remote; detachable nurse control panel with one‑touch CPR & patient evacuation; selective locking of patient controls
• Emergency features: manual CPR release; angle indicators on side rails
• Mobility & stability: Ø150 mm central lockable castors
• Extension: bed extension up to 18 cm
• Ingress protection & electrical: IPX6, Class I electrical protection; Power max. 350 W (100–240 V 50/60 Hz)
• Safe working load: 250 kg
