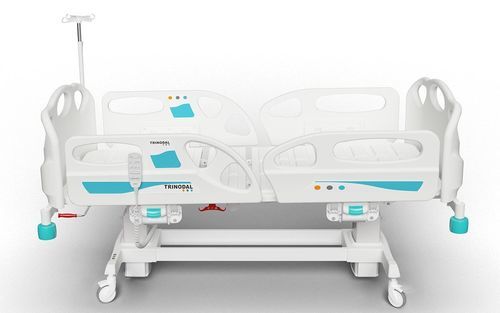

Hospital bed DE 4020 ADVANCED

electricTrendelenburgheight-adjustable

Overview
The DE 4020 ADVANCED is a fully motorized column electronic hospital bed designed for hospitals, recovery units and long-term care facilities that require precise patient positioning, caregiver ergonomics and reliable daily clinical performance.

Design & Operation
The bed integrates a column lifting motor system and four electric motorized functions: backrest, knee-rest, height adjustment and Trendelenburg/reverse Trendelenburg. The column structure delivers smooth, quiet and stable movement for patient positioning and routine care.

Comfort & Safety
An auto-regression backrest (10 cm travel) improves patient comfort during backrest adjustment. Pneumatically operated polypropylene side rails and removable bed ends provide secure support and ergonomic access for caregivers.

Construction & Hygiene
Built on an epoxy-coated metal frame with removable antibacterial ABS mattress platform panels, the bed includes protective corner bumpers and drainage bag hooks on both sides to meet hygiene and durability requirements in intensive healthcare environments.

Controls & Accessories
Standard equipment includes a manual CPR function, hand remote control, angle indicators on head and foot side rails, a height-adjustable IV pole and Ø125 mm cross-lockable castors for safe patient handling and mobility.

Standards
Designed in compliance with EN 60601-2-52 to ensure conformity with medical safety and performance requirements.

Key Features

• 4 motorized adult hospital bed
• Five movements: backrest, knee-rest, height adjustment, Trendelenburg and reverse Trendelenburg
• Auto-regression backrest system (10 cm)
• Epoxy coated metal frame
• Polypropylene side rails and bed ends (pneumatically operated)
• Patented side rail mechanism
• Drainage bag hooks on both sides
• Protective plastic corner bumpers
• Height-adjustable and removable I.V. pole
• Angle indicators on head & foot side rails
• Hand remote control panel
• Removable antibacterial ABS mattress platform panels
• Manual CPR function
• Ø125 mm cross lockable castors
• Protective earth & equipotential connection

Technical Dimensions

• External Dimension: 1080 x 2200 mm
• Bed Surface: 900 x 2000 mm
• Back-rest Angle: 0° – 75°
• Knee-rest Angle: 0° – 45°
• Height Adjustment (to mattress platform): Min. 460 mm, Max. 810 mm
• Trendelenburg / Reverse Trendelenburg Angle: ±16°
• Standard Weight Capacity: 250 kg
• Cross Lockable Castors: Ø125 mm
• IP Protection: IPX6
• Power Supply: Max. 350W / 100–240V ~ 50–60 Hz

Optional Parts

• Nurse control panel
• HPL backrest & X-Ray cassette holder
• Stainless steel I.V. pole
• Trapeze bar for patient lift
• Traction unit

Technical Specifications

• Model: DE 4020 ADVANCED
• Type: Column motorized electronic hospital bed
• Functions: Backrest, Knee-rest, Height adjustment, Trendelenburg, Reverse Trendelenburg (5-function)
• Auto-regression backrest travel: 10 cm
• Frame: Epoxy coated metal
• Side rails / bed ends: Polypropylene (pneumatically operated)
• Mattress platform: Removable ABS anti-bacterial panels
• Castors: Ø125 mm cross lockable
• Weight capacity: 250 kg (standard)
• IP Rating: IPX6
• Power: Max. 350W, 100–240V ~ 50–60 Hz
• Standards: Designed in compliance with EN 60601-2-52
