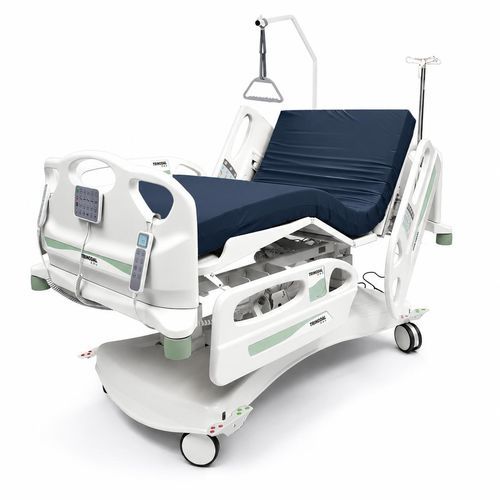

Intensive care bed DE 4050 MAX

electricTrendelenburgheight-adjustable

Overview
The DE 4050 MAX is a fully motorized flagship column ICU hospital bed with integrated weighing system designed for intensive care units and advanced clinical environments requiring continuous patient monitoring, precise handling and comprehensive positioning functions.

Key features
The integrated weighing system enables weight monitoring directly on the bed without patient transfer, supporting fluid balance management and critical-care workflows.

The bed uses a column motor lifting architecture with four motorized functions: backrest, knee-rest, height adjustment, and Trendelenburg/reverse Trendelenburg. This provides smooth, silent and stable movement during intensive daily care.

Integrated membrane side-rail controls, a detachable nurse control panel and a patient hand remote allow efficient caregiver operation while maintaining controlled patient access to non-critical functions.

Additional safety and usability features include battery backup, manual CPR mechanism, underbed lighting and semi-automatic foot section adjustment to parallel position to assist emergency procedures and improve caregiver ergonomics.

Constructed with an epoxy-coated metal frame, antibacterial removable ABS mattress platform panels, HPL X-ray translucent backrest section with cassette holder, polypropylene side rails and removable bed ends, the bed meets hygiene and durability requirements for demanding clinical settings.

An integrated 18 cm bed extension, stainless steel IV pole, trapeze bar, protective bumper covers and Ø150 mm central lockable double castors support safe patient handling and long-term clinical usability. An optional 5th castor can be added to improve maneuverability during transfers.

Specifications / Included equipment

• 4 Motorized adult hospital bed
• Backrest, knee-rest, height adjustment, Trendelenburg and reverse Trendelenburg movements (5 functions)
• Auto regression backrest system (10 cm)
• Epoxy coated metal frame
• Polypropylene side rails and removable bed ends
• Patented side rail mechanism with embedded PCB controls
• Drainage bag hooks on both sides
• Protective plastic corner bumpers
• Stainless steel height-adjustable and removable IV pole
• Angle indicators on head and foot side rails
• Integrated weighing system
• Hand remote control panel
• Detachable nurse control panel
• Embedded PCB control panels on side rails
• HPL antibacterial backrest platform and X-ray cassette holder
• Other mattress platform parts from antibacterial removable ABS plastic
• Manual CPR
• Bed extension up to 18 cm
• Ø150 mm central lockable double castors
• Trapeze bar
• Battery backup
• Underbed light
• Protective earth and equipotential connection

Optional parts

• 5th castor for improved maneuverability
• Full HPL bed surface
• Traction unit

Technical dimensions

• Mattress platform: 900 x 2000 mm
• Height (without mattress): 480–830 mm
• External dimension: 1080 x 2200 mm
• Back-rest angle: 0–70°
• Knee-rest angle: 0–45°
• Footrest angle: 0–30°
• Trendelenburg / Reverse Trendelenburg: ±16°
• Central lockable double castor diameter: Ø150 mm
• Safe Working Load (SWL): 250 kg
• Liquid ingress protection: IPX6
• Power: Max. 350 W, 100 V – 240 V ~ 50/60 Hz
• Electrical shock protection: Class I

Technical specifications

• Model: DE 4050 MAX
• Integrated patient weighing system
• Column motor lifting architecture with 4 motorized functions and smooth, silent operation
• Auto regression backrest (10 cm)
• Epoxy coated metal frame
• HPL X-ray translucent backrest with cassette holder
• Antibacterial removable ABS mattress platform panels
• Polypropylene side rails and removable bed ends
• Patented side rail mechanism with embedded PCB controls
• Detachable nurse control panel and patient hand remote
• Manual CPR mechanism
• Battery backup for continued operation
• Underbed lighting
• Semi-automatic foot section adjustment to parallel position
• Bed extension: +18 cm
• Ø150 mm central lockable double castors (optional 5th castor available)
• Stainless steel adjustable and removable IV pole; trapeze bar
• Protective plastic corner bumpers and bumper covers
• Drainage bag hooks both sides
• Safe working load: 250 kg
• IP rating: IPX6
• Power consumption: Max. 350 W (100–240 V, 50/60 Hz)
• Electrical safety: Class I
