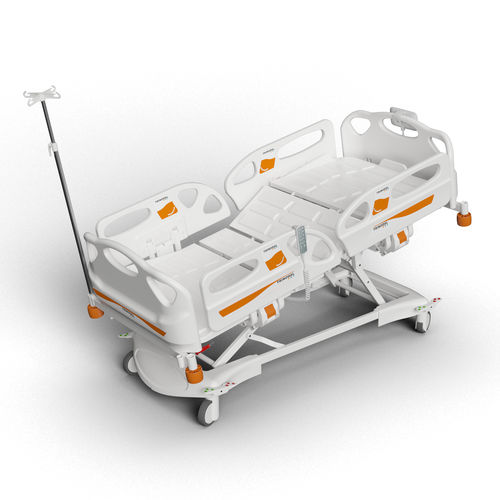

Hospital bed DE 4000X PLUS

electricTrendelenburgheight-adjustable

The DE 4000X PLUS is a fully motorized electronic hospital bed developed for long-term care and general ward applications.

Featuring electric backrest, knee-rest, height adjustment, Trendelenburg and reverse Trendelenburg movements, the bed supports both patient comfort and caregiver efficiency.

Its removable ABS mattress platform enhances hygiene and easy cleaning, while the integrated manual CPR function improves emergency usability. Designed with a durable steel frame and ergonomic polypropylene side rails, the DE 4000X PLUS delivers reliable daily performance for modern healthcare environments.

Manufactured according to EN 60601-2-52 standards.

SPECIFICATION

• 4 Motorized Adult Hospital Bed
• Backrest, Knee-Rest, Height Adjustment, Trendelenburg and Reverse Trendelenburg Movements / 5 Function
• Auto Regression Backrest System (10 cm) to Improve Patient Comfort During Backrest Adjustment
• Epoxy Coated Metal Frame
• Polypropylene Side Rails and Bed Ends
• Patented Side Rail Mechanism
• Drainage Bag Hooks at Both Side
• Protective Plastic Corner Bumpers
• Height Adjustable and Removable I.V. Pole
• Angle Indicators on Head & Foot Side Rails
• Hand Remote Control Panel
• ABS Plastic (Removable) Anti-Bacterial Mattress Platform
• Manual CPR
• Ø125 mm Cross Lockable Castors

TECHNICAL DIMENSIONS

• Mattress Platform: 900 x 2000 mm
• Height (Without Mattress): 380-850 mm
• External Dimension: 1080 x 2200 mm
• Back-Rest Angle: 0-75°
• Knee-Rest Angle: 0-45°
• Trendelenburg/Reverse Trendelenburg: ±18°
• Cross Castor Diameter: Ø125 mm
• Safe Working Load Capacity: 230 kg
• Liquid ingress Protection: IPX6
• Power: Max. 350W / 100–240V ~ 50–60 Hz
• Electrical Shock Protection: Class I

OPTIONAL PARTS

• Nurse Kontrol Panel
• Trapeze Bar for Patients’ Lift
• Stainless Steel I.V Pole
