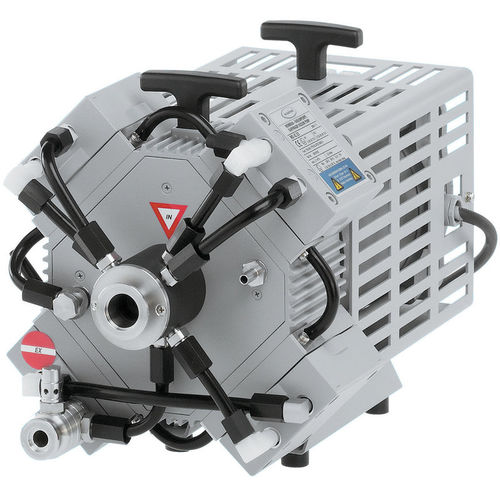

Laboratory vacuum pump MD 4C EX

for rotary evaporatorsdiaphragmmulti-stage

Overview

• Excellent chemical resistance and high vapor tolerance
• Flameproof motor with integrated self-locking overload and excess temperature protection for direct 230 V / 50 Hz single-phase supply (no additional customer overcurrent protection required)
• Overpressure safety relief valves internally and at outlet
• Safety diaphragm technology with inert gas purge option and diaphragm rupture detection

ATEX and application note
ATEX chemistry diaphragm pumps provide the benefits of oil-free chemistry diaphragm technology for use in potentially explosive atmospheres. Typical applications include rotary evaporators and vacuum drying ovens. The ATEX approval covers both the pump interior (in contact with pumped gases) and the pump environment. All wetted parts are chemically resistant and mainly made of antistatic materials. A separate gas ballast connection for inert gas use is included.

Product details
Ultimate vacuum: 3 mbar / 2.3 torr
Ultimate vacuum with gas ballast: 10 mbar / 7.5 torr
Max. pumping speed (50 Hz): 3.7 m3/h
Number of heads: 4
Number of stages: 3
Rated motor power: 0.25 kW
Rated motor speed at 50/60 Hz: 1500 min-1 (50 Hz shown)
Rated mains voltage range: 230 V, mains frequency 50 Hz
Protection class (IEC 60529): IP 54
Inlet connection: small flange KF DN 25
Outlet connection: small flange KF DN 16
Max. back pressure (abs.): 1.1 bar
Dimensions (L × W × H): 440 × 265 × 305 mm
Weight: 29.3 kg
Noise (sound pressure level) at 50 Hz: 53 dBA
ATEX conformity: Pumping chamber (pumped gases): II 2G Ex h IIC T3 Gb X; Environment with inert purge gas: II 2G Ex h IIB T4 Gb X; Environment without inert purge gas: II 3G Ex h IIB T4 Gc X; Motor: II 2G Ex db IIB T4 Gb

Items supplied
Pump completely mounted, with manual, 10 m cable without plug. Article no.: 20696930. Delivery: On demand.

Technical specifications

• Model: MD 4C EX
• Oil-free chemistry diaphragm pump with ATEX conformity
• Wetted parts antistatic and chemically resistant
• Flameproof motor with integrated overload and excess temperature protection
• Safety diaphragm system with inert gas purge option and diaphragm breakage detection
• Gas ballast connection included
• Connections: Inlet KF DN 25, Outlet KF DN 16
• Dimensions (L×W×H): 440 × 265 × 305 mm; Weight: 29.3 kg
• Sound pressure level: 53 dBA (50 Hz)
• Article number: 20696930
