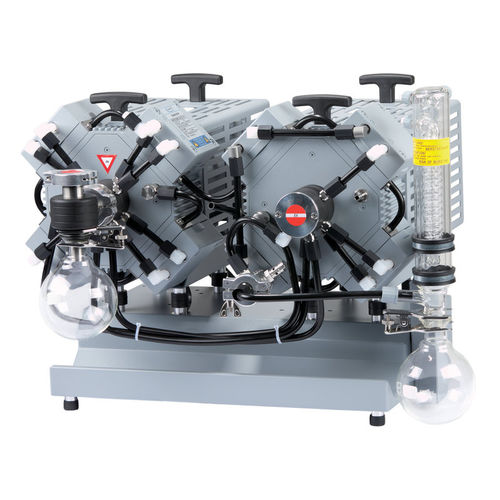

Rotary evaporator vacuum pump MV 10C EX VARIO +AK+EK

laboratorydiaphragmoil-free

Overview

• ATEX chemistry diaphragm pump unit with inlet separator (AK) and emission condenser (EK)
• VARIO®: hysteresis‑free vacuum control for shorter process times
• VARIO®: on‑demand speed control—reduced power use, extended maintenance intervals, low noise
• Optional VACUU·SELECT vacuum controller (with ATEX sensor) for precise, fully automatic processes
• Additional devices required for operation (e.g. ATEX vacuum sensor, Connection Box 100) — available from VACUUBRAND

Product description
The MV 10C EX VARIO is an oil‑free chemistry diaphragm pump unit designed for ATEX areas. Vacuum is regulated precisely by controlling motor speed via a 4–20 mA control loop. The VARIO® feature allows the pump to run only as fast as required for the process. The optional VACUU·SELECT vacuum controller, combined with an ATEX vacuum sensor and Connection Box 100, enables fully automatic evaporations: adaptive control detects boiling pressure and continuously adjusts the vacuum according to vapor pressure. VACUU·SELECT and the Connection Box 100 are installed in a non‑hazardous area.

Product details

• Model designation: MV 10C EX VARIO (+AK +EK in this configuration)
• Article no.: 20696947
• Ultimate vacuum: 2 mbar (1.5 torr)
• Ultimate vacuum with gas ballast: 10 mbar (7.5 torr)
• Max. pumping speed (50 Hz): 8.1 m3/h
• Number of heads: 8
• Number of stages: 4
• Rated motor power: 0.5 kW

Technical specifications

• Speed control: 4–20 mA current loop (4 mA = 0 rpm, 20 mA = 1500 rpm); control signal and mains cable length 10 m, without plugs
• Inlet connection: KF DN 25 (small flange)
• Outlet connection: hose nozzle DN 8–10 mm
• Coolant connections: 2 × hose nozzle DN 6–8 mm
• Max. back pressure (abs.): 1.1 bar
• Operating ambient temperature: 10 °C to 40 °C
• Storage temperature: -10 °C to 60 °C
• Protection class: IP 54 (IEC 60529)
• Dimensions (L × W × H): 651 × 555 × 452 mm
• Weight: 63 kg
• Sound pressure level (50 Hz): 42 dBA
• ATEX conformity: Pumping chamber (pumped gases): II 2G Ex h IIC T3 Gb X; Environment with inert purge gas: II 2G Ex h IIB T4 Gb X; Environment without inert purge gas: II 3G Ex h IIB T4 Gc X; Motor: II 2G Ex db IIB T4 Gb
• Items supplied: Pumping unit assembled with two motors (each with control and mains cable), inlet separator (AK) and emission condenser (EK), manual. Additional devices required for operation (e.g. Connection Box 100, controller).
