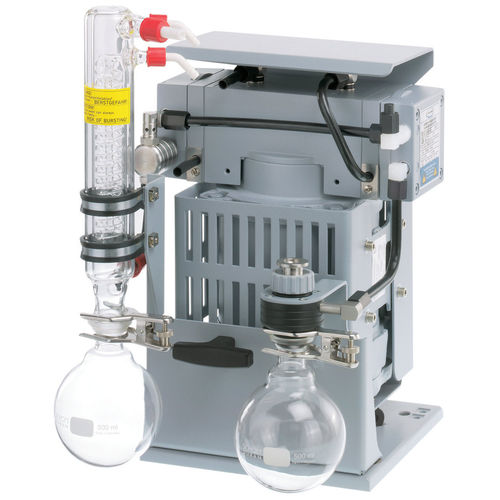

Laboratory vacuum pump MZ 2C EX

for rotary evaporatorsdiaphragmmulti-stage

Overview

• Outstanding chemical resistance and superior vapor tolerance
• Flameproof motor with integrated, self-locking overload and excess temperature protection for direct 230 V / 50 Hz single-phase supply; no additional overcurrent protection required
• Overpressure safety relief valves internally and at outlet
• Safety diaphragm technology with option for inert gas purge and detection of diaphragm breakage
• Inlet separator AK and emission condenser EK for pump protection and solvent recovery

Product description
ATEX chemistry vacuum systems are ready-for-use units configured for applications with large amounts of condensable vapors. Typical applications include rotary evaporators and drying ovens in potentially explosive atmospheres. The inlet separator (AK) retains particles and liquid droplets. The outlet emission condenser (EK) is compact and highly efficient, enabling near-100% solvent recovery. A separate gas ballast connection for use with inert gas is included with delivery.

Technical data and graphs (key values)
Max. pumping speed 50 Hz: 1.9 m3/h
Ultimate vacuum: 12 mbar / 9 torr
Ultimate vacuum with gas ballast: 18 mbar / 13.5 torr
Number of heads: 2
Number of stages: 2
Operating ambient temperature: 10 °C to 40 °C
Storage temperature: -10 °C to 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: small flange KF DN 16
Outlet connection: Hose nozzle DN 8-10 mm
Coolant connection: 2 x hose nozzle DN 6-8 mm
Rated motor power: 0.15 kW
Rated motor speed (50/60 Hz): 1500 min-1
Protection class IEC 60529: IP 52
Dimensions L x W x H: 357 x 308 x 470 mm
Weight: 27.5 kg
Noise (sound pressure level) at 50 Hz: 50 dBA
ATEX conformity: Pumping chamber (pumped gases): II 2G Ex h IIC T3 Gb X; Environment with inert purge gas: II 2G Ex h IIB T4 Gb X; Environment without inert purge gas: II 3G Ex h IIB T4 Gc X; Motor: II 2G Ex db IIB T4 Gb
Items supplied: Pumping unit completely mounted with inlet separator (AK) and emission condenser (EK), manual, 10 m cable without plug. Shatter and shock protection for glass parts to be provided by the customer.

Characteristics / technical specifications

• Model: MZ 2C EX +AK+EK (two-stage chemistry vacuum system)
• Article number: 20696921
• Ultimate vacuum: 12 mbar (18 mbar with gas ballast)
• Max. pumping speed (50 Hz): 1.9 m3/h
• Heads / stages: 2 / 2
• Connections: Inlet KF DN16; Outlet hose nozzle DN 8-10 mm; Coolant 2 x DN 6-8 mm
• Rated motor power / speed: 0.15 kW / 1500 min-1 (50 Hz)
• Protection class: IP 52
• Dimensions (L x W x H): 357 x 308 x 470 mm
• Weight: 27.5 kg
• Noise: 50 dBA (50 Hz)
• Power supply: 230 V / 50 Hz (single-phase)
• ATEX conformity details as listed above
• Items supplied: Complete pumping unit with AK and EK, manual, 10 m cable without plug
