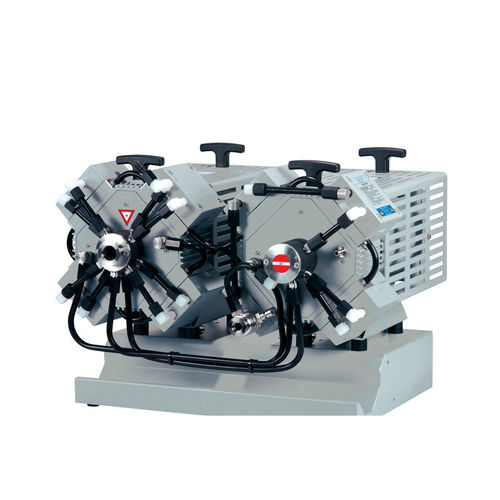

Laboratory vacuum pump MV 10C EX VARIO

diaphragmmulti-stageoil-free

Overview

• ATEX-compliant chemistry diaphragm pump with VARIO® speed control for adaptive vacuum regulation
• VARIO®: hysteresis-free vacuum control for reduced process times
• On-demand operation: minimized power consumption, extended maintenance intervals and low noise
• Optional VACUU·SELECT or CVC 3000 vacuum controllers with ATEX vacuum sensor and Connection Box 100 enable fully automatic processes
• Additional ATEX components (vacuum sensor, Connection Box, controller) required for safe automated operation

Product highlights

• Model: MV 10C EX VARIO (four stage)
• ATEX conformity for pumped gases and motor (see technical data)
• Oil-free, chemically resistant diaphragm technology
• Speed control via 4–20 mA current loop (4 mA = 0 rpm, 20 mA = 1500 rpm)
• Delivered completely mounted with two motors, control and mains cables (10 m, without plugs)

Key performance values

• Ultimate vacuum (without gas ballast): 2 mbar (≈ 1.5 torr)
• Ultimate vacuum with gas ballast: 10 mbar (≈ 7.5 torr)
• Max. pumping speed (50 Hz): 8.1 m3/h

Technical data and graphs
Max. pumping speed 50 Hz: 8.1 m3/h
Ultimate vacuum: 2 mbar / 1.5 torr
Ultimate vacuum with gas ballast: 10 mbar / 7.5 torr
Number of heads: 8
Number of stages: 4
Vacuum controller: without controller (optional VACUU·SELECT / CVC 3000)
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: small flange KF DN 25
Outlet connection: small flange KF DN 16
Rated motor power: 0.5 kW
Minimum motor speed VARIO: 30 min-1
Maximum motor speed VARIO: 1500 min-1
Protection class IEC 60529: IP 54
Dimensions (L x W x H): 560 x 457 x 410 mm
Weight: 61 kg
Noise (sound pressure level) at 50 Hz: 42 dBA
ATEX conformity summary: Pumping chamber (pumped gases): II 2G Ex h IIC T3 Gb X; Environment with inert purge gas: II 2G Ex h IIB T4 Gb X; Environment without inert purge gas: II 3G Ex h IIB T4 Gc X; Motor: II 2G Ex db IIB T4 Gb

Article number
Articleno. 20696946

Technical specifications

• Type: VARIO® ATEX chemistry diaphragm pump, oil-free, four stage
• Ultimate vacuum: 2 mbar (1.5 torr)
• Ultimate vacuum with gas ballast: 10 mbar (7.5 torr)
• Pumping speed (50 Hz): 8.1 m3/h
• Number of heads: 8; number of stages: 4
• Inlet / outlet: KF DN 25 / KF DN 16
• Rated motor power: 0.5 kW
• Motor speed VARIO: 30 – 1500 min-1 (controlled via 4–20 mA)
• Protection class: IP 54
• Dimensions L x W x H: 560 x 457 x 410 mm
• Weight: 61 kg
• Noise: 42 dBA (at 50 Hz)
• Max. back pressure (abs.): 1.1 bar
• ATEX ratings: Pumping chamber II 2G Ex h IIC T3 Gb X; with inert purge II 2G Ex h IIB T4 Gb X; without inert purge II 3G Ex h IIB T4 Gc X; Motor II 2G Ex db IIB T4 Gb
• Notes: Additional devices required for safe ATEX operation (e.g. Connection Box 100, ATEX vacuum sensor, VACUU·SELECT / CVC 3000 controller)
