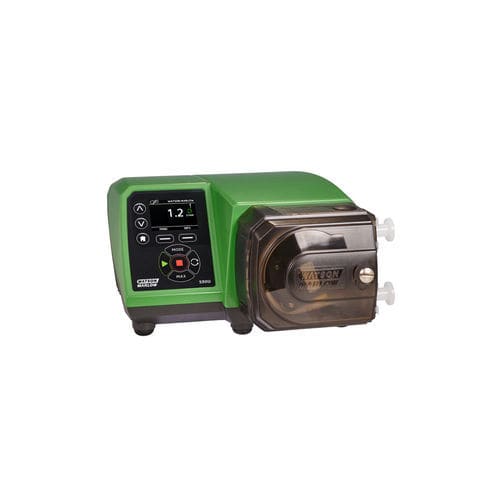

Liquid dispensing laboratory peristaltic pump 500

Overview
The 530 drive in the 500 series is a cased peristaltic pump offering precise, repeatable fluid transfer with a user-focused HMI. Fluid is fully contained within tubing to ensure product isolation. The interface provides visual status and requires minimal key presses for routine operation.

Pumphead options available as standard (others available on request)

• 520R and 520R2 pumpheads for continuous tubing
• 520REL, 520REM, 520REH and 520RET pumpheads for tube elements (low, medium and high pressures)
• 505L dual-channel low-pulse high-accuracy dispensing pumphead

Features and benefits

• Colour display and intuitive menu structure with visual status indicators
• Flow rates from 0.004 ml/min (0.0006 USGPH) to 3.5 L/min (55.48 USGPH), depending on pumphead and tubing
• Standard pumpheads: 520R, 520R2, 520REL, 520REM, 520REH, 520RET, 505L; custom options on request
• 2200:1 speed control range — 0.1 to 220 rpm in 0.1 rpm increments
• Keypad with 3-level security PIN lock
• Cased configurations: IP31 (NEMA 2) and IP66 (NEMA 4X)
• Dual voltage: 115 V / 230 V 50/60 Hz
• Interfaces: Remote Analogue/Digital, RS232, RS485, PROFIBUS®, PROFINET®, SCADA and EtherNet/IP™

Technical summary
Max. flow rate — 3500 ml/min
Min. flow rate — 0.004 ml/min
Max. flow rate — 56 USGPH
Min. flow rate — 0 USGPH (range dependent)
Drive speed control ratio — 2200:1
Operating temperature — 5 °C to 40 °C (40 °F to 104 °F)
Control types — EtherNet/IP™, Profibus®, Profinet®, Remote Analogue/Digital, RS232, RS485, SCADA
Standards — CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and LoadSure elements), RoHS
Drive ingress protection — IP31, IP66, NEMA 2, NEMA 4X
Drive power supply — 115/230 V 1ph 50/60 Hz 135 VA
Compatible tubing bore size — 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm

Performance highlights (examples, tube/pumphead dependent)
520R twin sprung roller pumpheads (1.6 mm wall thickness) — Pumpsil/GORE PFL examples: 0.004–97 ml/min depending on bore and speed; some pumphead/drive combinations cover up to 2400 ml/min.
520R2 twin sprung roller pumpheads (2.4 mm wall thickness) — up to 3500 ml/min with larger bores.
520REL / 520REM / 520REH / 520RET — performance varies by tube material and bore; refer to performance tables for specific combinations.

Available drives and control options

• 530S / 530SN — Standard manual drives (IP31 or IP66)
• 530U / 530UN — Universal drives with configurable inputs/outputs
• 530Du / 530DuN — Drives with configurable I/O plus RS232/RS485
• 530Bp / 530BpN — Bus pump for PROFIBUS (real-time bus communications)
• 530En / 530EnN — EtherNet/IP™ connectivity
• 530Pn / 530PnN — PROFINET® connectivity

Documentation & media on this product page
Datasheets, manuals and brochures are available as downloadable PDFs. An interactive 'Take a tour' product iframe is embedded on the page.

Technical characteristics / specifications

• Series: 500 series (530 drive examples)
• Flow range: 0.004 ml/min up to 3500 ml/min depending on pumphead and tubing
• Speed range: 0.1 to 220 rpm (2200:1 control ratio)
• Pumphead options: 520R, 520R2, 520REL, 520REM, 520REH, 520RET, 505L
• Tubing compatibility examples: Pumpsil®, Marprene®, Bioprene®, PureWeld XL®, GORE® STA-PURE®
• Compatible tubing bores: 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm (model-dependent)
• Drive ingress protection: IP31 (NEMA 2) or IP66 (NEMA 4X)
• Drive power supply: 115/230 V 1ph 50/60 Hz 135 VA
• Operating temperature: 5 °C to 40 °C
• Drive humidity: non-condensing up to 80% to 31 °C, then linearly to 50% at 40 °C
• Drive noise: <70 dBA at 1 m
• Max. altitude: 2000 m (6562 ft)
• Weight (range): approx. 10.5–11.5 kg depending on configuration
• Materials: drive case — die-cast aluminium LM24 with polyester powder coat; bearings — stainless steel; pumphead components — acetal, polycarbonate, PPS, stainless steel (model-dependent)
• Standards and certifications: CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for certain tubing/elements), RoHS
• Security: 3-level PIN lock on keypad
