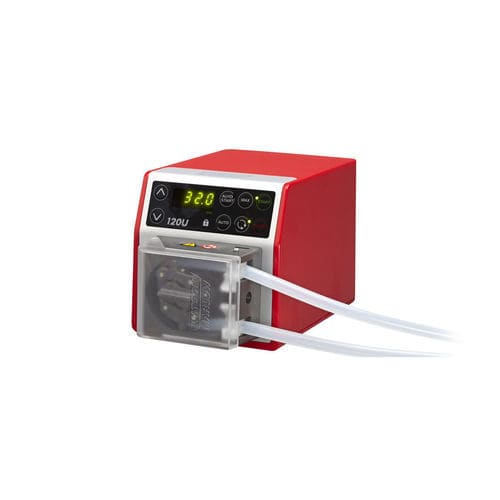

Compact laboratory peristaltic pump 100

Overview
100 series pumps are small and stackable, saving valuable space in cleanroom, LAF and biosafety cabinet installations. Capable of flow rates up to 190 ml/min. The 100 series is ideal for maximising yield in fermentation and cell culture applications, ultra-compact and stackable for multiple feeds such as pH control, antifoam, nutrient and buffer addition. The 120 drive offers the combination of size and technology to optimise processes. The 100 series pump is well suited to single-use systems and features an error-free tube change that takes only seconds. With an exceptional 2,000:1 speed range the pump delivers flexibility and purity for biopharmaceutical processes and includes a keypad lock to secure pumping parameters for consistent and repeatable performance.

Pumphead options available as standard

• 102R single channel, two roller pumphead for continuous tubing
• 114DV flip-top single-channel pumphead for continuous tubing
• 400D1 single-channel pumphead for continuous tubing
• 400DM2 twin-channel pumphead for manifold tubing
• 400DM3 three-channel pumphead for manifold tubing

Features and benefits

• Smooth, wipe-down case with no sharp edges to tear gloves and no bug traps; IP31 ingress protection
• Superior speed control up to 2,000:1, ±1 % set speed accuracy, repeatable flow
• Efficient and intuitive operation requiring minimal key presses
• Compact footprint requiring minimal benchtop space
• Maintenance-free, brushless DC motor
• Single, twin or three channels of flow available
• Manual, remote or auto control options
• Three-year warranty

Technical summary (key performance & operating data)
Max. flow rate: 190 ml/min
Min. flow rate: 0.0001 ml/min
Max. flow rate: 3.04 USGPH
Min. flow rate: 0.00002 USGPH
Max. operating pressure: 2 bar (30 psi)
Speed control ratio: 32:1, 100:1, 200:1, 320:1, 1000:1, 2000:1
Operating temperature: 5 °C to 40 °C (40 °F to 104 °F)
Drive ingress protection: IP31, NEMA 2
Drive power supply: Supplied with 24 V DC mains transformer plug (range 90 V to 264 V AC, 47 Hz to 63 Hz) which comes with multi-country adaptors
Standards: CSA C22.2 No. 61010-1:2012/U3:2023-06; EN 61010-1:2010/A1:2019; IEC 61010-1:2010/AMD1:2016; UL 61010-1:2012/R:2023-06

Performance examples (selected pumphead data)
102R (single-channel, two-roller) — typical ranges: 0.003 ml/min to 54 ml/min at 2 bar (30 psi); fixed-speed variants for 10, 17, 31, 52 rpm examples shown in performance tables.
114DV (flip-top, single-channel) — flow ranges up to 170 ml/min depending on tube bore; continuous tubing, easy flip-top loading.
400D1 (single-channel metering) — flow rates from 0.001 ml/min to 120 ml/min (model dependent).
400DM2 / 400DM3 (manifold twin/three-channel) — ultra-low-flow metering options, per-channel flow rates from 0.0001 ml/min to 36 ml/min.

Pumpheads & materials (summary)

• Pumphead body materials vary by pumphead: e.g. Acetal copolymer (Kematal), PVDF, Grilamid PA12, Polyacrylamide—IXEF (PARA), aluminium (anodised), PETG
• Pumphead rollers and rotors use materials such as MoS2 filled Nylon 6 (Nylatron), PTFE-filled PBT, acetal, IXEF, FPM, stainless steel (varies by pumphead)
• Drive casework: ABS plastic; Drive keypad/HMI: polyester

Notes
Technical summary table lists features available within the range; refer to model-specific datasheets for exact per-model flow tables, tubing compatibility and ordering codes.

Technical specifications

• Product family / denomination: 100 series cased pump
• Max. flow: 190 ml/min (model and pumphead dependent)
• Min. flow: 0.0001 ml/min (model and pumphead dependent)
• Max. operating pressure: 2 bar / 30 psi
• Speed control ratios available: 32:1, 100:1, 200:1, 320:1, 1000:1, 2000:1
• Operating temperature range: 5 °C to 40 °C (40 °F to 104 °F)
• Drive ingress protection: IP31 (NEMA 2)
• Drive power supply: 24 V DC transformer supplied (AC input 90–264 V, 47–63 Hz) with multi-country adaptors
• Control options: Fixed speed (120F), Manual variable speed (120S), Auto variable speed with analogue inputs (120U)
• Remote control/feedback: available on variable/auto drives (run/stop, direction, auto/man toggle, alarm, analogue speed input on 120U)
• Drive noise: <60 dB(A) at 1 m
• Max. altitude: 2000 m (6562 ft)
• Warranty: 3 years (product literature)
