Laboratory pump 300

dosingdispensingelectric

Overview

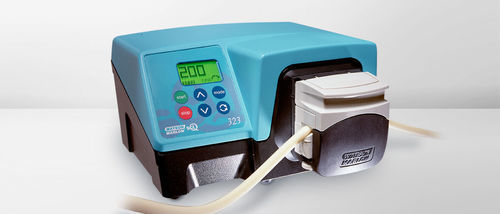

The 300 series cased benchtop pumps are laboratory-grade drives offering manual, remote, analogue (0–10 V / 4–20 mA) or RS232 control. Drives feature a chemically resistant ABS top, powder-coated casework and IP31 ingress protection. Four drive variants provide graduated control and functionality: 323Du (RS232/auto/manual, high-flow), 323U (analogue-auto/enhanced manual), 323S (high-performance manual) and 323E (manual).

Pumphead options available as standard (others available on request):

• 313D / 313D2 — three-roller pumpheads for continuous tubing
• 314D / 314D2 — four-roller pumpheads for continuous tubing
• 314MC — four-roller five-channel microcassette pumphead
• 318MC — eight-roller five-channel microcassette pumphead
• 501RL / 501RL2 — single-channel spring-loaded pumpheads for large-bore tubing

Features and benefits

• Control: manual keypad, remote TTL run/stop & direction, analogue 0–10 V or 4–20 mA, RS232 on applicable models
• Enhanced digital manual speed control up to 133:1 (model-dependent)
• Keypad lock to prevent accidental changes
• MemoDose function for accurate single-shot dosing
• Digital TTL inputs for run/stop and direction; instantly reversible
• Two-year manufacturer warranty

Technical summary
Max. flow rate: 3000 ml/min
Min. flow rate: 0.002 ml/min
Speed control ratios: 27:1, 133:1, 147:1, 200:1, 300:1 (model-dependent)
Operating temperature: 5 °C to 40 °C (40 °F to 104 °F)
Standards: CE, cETLus
Drive ingress protection: IP31
Drive power supply: 1ph, 100–120 V or 220–240 V, 50/60 Hz, 100 VA
Compatible tubing bore sizes (mm): 0.13 to 8 (multiple increments listed)

Performance highlights (examples from range)
313D three-roller: flows up to 2,000 ml/min (dependent on pumphead/drive and speed)
314D four-roller: flows up to 1,600 ml/min (dependent on pumphead/drive and speed)
MC4 microcassette (five-channel): low-flow capability down to 0.002 ml/min (at low rpm); example 3 rpm → 0.002 ml/min (small bores)
501RL spring-loaded single-channel: flows up to 3,000 ml/min (large bore at higher speeds)

Documentation and downloads
Manufacturer provides datasheets and manuals for specific pumphead/drive combinations; separate downloadable files are available per pumphead and drive variant (referenced on the product page).

Technical specifications

• Range name: 300 series (cased benchtop drives)
• Models: 323E, 323S, 323U, 323Du (different control and speed capabilities)
• Flow rate (range across pumpheads): 0.002 ml/min to 3000 ml/min
• Operating speed: typically 1–400 rpm depending on pumphead and drive option
• Speed control ratios available: 27:1, 133:1, 147:1, 200:1, 300:1 (model-dependent)
• Drive control options: manual keypad, remote TTL, analogue 0–10 V / 4–20 mA, RS232 (model-dependent)
• Inputs: digital TTL for run/stop and direction; analogue and RS232 per model
• Operating temperature & humidity: 5 °C to 40 °C; humidity up to 80% to 31 °C, decreasing to 50% at 40 °C
• Standards & safety: CE, cETLus
• Ingress protection (drive): IP31
• Drive power: single-phase 100–120 V or 220–240 V, 50/60 Hz, 100 VA
• Typical drive weight: ~4.7 kg (may reach 5.6 kg with larger pumpheads)
• Materials: ABS top, powder-coated aluminium case; pumphead components in glass-filled polypropylene, IXEF, polycarbonate guards, aluminium or stainless-steel rotors/spindles
• Compatible tubing: wide range of bores and wall thicknesses; specific tubing codes provided in manufacturer documentation
