Electrical safety tester HECG100

signalfor electrocardiographECG

Overview

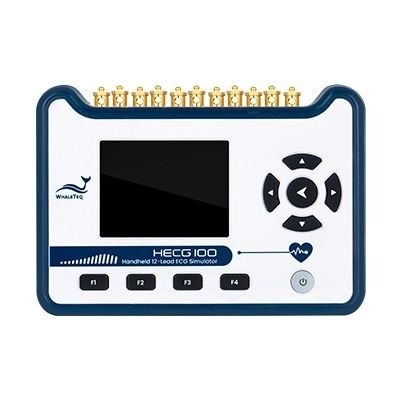

The HECG100 is a handheld 12‑lead ECG simulator designed for medical device R&D and compliance testing. It provides clinical waveform playback from detachable microSD, automated test sequences, EMI/EMS compatibility and a rechargeable battery to reduce mains interference during EMC testing.

Functions

• Raw Data Playback: Store and play custom raw ECG data from included 32 GB microSD; device outputs a primary channel and derives other leads using fixed ratios to Lead II.
• Automated Quick Testing: Create and run custom test sequences without programming to speed verification and reduce setup errors.
• Advanced Signals & Add‑ons: Built‑in database of 32 arrhythmias; DC offset, noise injections, cardiac pacing and respiration simulation can be superimposed on ECG waveforms.
• Fast Start: Boot and run custom tests within seconds for efficient bench workflow.
• EMC‑Friendly Design: Includes CAL20110 waveform for IEC 60601‑2‑25 EMC testing; suitable for use alongside DUT in battery mode.
• ESD‑Protected Electrode Terminals: Protection up to 8 kV (contact) and 15 kV (air).
• Long Battery Operation: Up to 8 hours in normal use and up to 12 hours in power‑saving mode.
• Impact Resistance: Complies with IEC 60068‑2‑31 free‑fall test.
• Flexible Charging: USB‑C charging (USB‑PD supported) or external DC adapter.

Highlights

• Automated sequences reduce repetitive setup and human error.
• Clinical raw data playback for realistic device performance evaluation.
• Signal add‑ons (DC offset, noise, pacing, respiration) to simulate real‑world conditions.

Compliance (EMC / Safety)

• EMI/EMC: Meets FCC EMC P15B and EN61326‑1.
• ESD: IEC 61000‑4‑2 compliance — 8 kV contact, 15 kV air.
• Safety: Designed to meet IEC/EN61010‑1 requirements and operate alongside DUT during IEC 60601‑1‑2 testing when battery‑powered.

Ordering / Package (Standard Package)

• Model: HECG100 (Handheld 12‑lead ECG Simulator)
• Package contents: HECG100 ×1; RCA to BNC cable (60 cm, black) ×1; USB Type‑C to Type‑C cable (44 cm, black) ×1; 32 GB microSDHC card ×1

Optional Accessories

• DC 12 V power adaptor
• RCA male to BNC cable (60 cm, black)
• USB Type‑C to Type‑C cable (44 cm, black)
• 32 GB microSDHC card

Documentation and Tools (available)

• Datasheet
• User Manual
• Release Notes for update tool
• Firmware Update Tool (software archive)

Specifications / Technical data

• Heart rate accuracy: ±1%
• Amplitude accuracy: ±2%
• Frequency / pulse repetition accuracy: ±1%
• Pulse duration accuracy (excluding pacing): ±0.5 ms
• ECG duration accuracy: ±0.5 ms
• Pacing pulse width accuracy: ±5 μs
• Pacing pulse amplitude accuracy: ≤2 mV pulse: ±0.3%; >2 mV pulse: ±10%
• Pacing pulse characteristics: Rise/fall time 5 μs; Overshoot <1%; Settling time <1%
• Capacitor tolerance: ±5%
• Sample rate: 10 kHz ±0.05%
• RCA output amplitude range: ECG electrode output ×1000, max 10 V
• RCA output amplitude accuracy: ±1% for amplitudes ≥0.5 Vpp
• Lead output ratios (ref. Lead II = 100): Lead I 70; Lead II 100; Lead III 30; V1 24; V2 48; V3 100; V4 120; V5 112; V6 80
• Total harmonic distortion: 5%
• Signal‑to‑noise ratio: ≥60 dB
• DC offset: fixed ±1% or selectable ±300 / ±500 / ±1000 mV (may include up to 50 μVpp noise)
• Respiration simulation: Impedance baseline ±5%; variation ΔΩ ±(5% of setting) + 0.05 Ω
• ECG presets: Heart rate 10–300 BPM; Amplitude 0.1–5 mVpp; ST deviation −0.6 to 0.6 mV
• Auxiliary pulses: Sine/triangle/square/rectangle with multiple frequency/amplitude presets
• Signal add‑ons: DC offset, pacing (1–100 mV, 0.1–3 ms), drift (triangle 0.1 Hz, 4 mVpp), noise (50/60 Hz, white 1–10 mVpp), respiration (15/20/30/40 BrPM), baseline impedances 500/1000/1500 Ω, variation 1/2/5 Ω, apnea options 12s/22s/32s/continuous/off
• Raw data playback: max sample rate 10 kHz; repeated playback supported; detachable microSD (32 GB included)
• Operating temperature: 10°C–40°C; Storage: 0°C–50°C
• Humidity: 10%–90% non‑condensing
• Altitude: up to 2000 m
• Communications: USB Type‑C
• Power: 5 V DC; Battery charger: 5 V, 1 A
• Battery life: up to 12 h (power‑saving mode)
• Mechanical: ABS housing; Size (L×W×H) 18.0 × 12.8 × 5.5 cm; Weight 950 g
• Data capacity: 32 GB microSD included
• EMC standards: FCC EMC P15B; CE: EN61326‑1; IEC 61000‑4‑2/‑3/‑6/‑8 compliance
