Electrical safety tester HFCN

signalfor electrosurgical unitsfor electrocardiograph

Overview

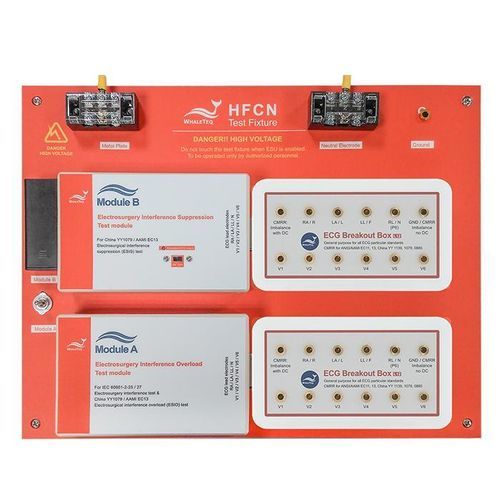

The HFCN test fixture is a high-frequency coupling network designed for electrosurgery interference (ESIO/ESIS) testing and compliance verification with IEC 60601 series, China YY1079 and AAMI EC13. It integrates dual test modules and a breakout box to reproduce skin impedance and provide an ECG simulation path for standardized interference measurements.

Highlights

• Dual-module configuration (Module A and Module B) for separate ESIO/ESIS and ECG simulation functions
• Built-in skin-impedance circuit: 51 kΩ / 47 nF (C0G) to simulate patient path
• ECG simulator in Module B producing 1 mV ±10% signals for ESIS testing
• High power handling: overall test fixture rating >300 W; non-inductive power resistors specified 200 W/pcs
• Low resistor inductance (<5 μH) and wide frequency range DC to 100 MHz
• Compatible with BB-C1 breakout box and WhaleTeq SECG 4.0 / MECG 2.0 software tools

Specifications
Standards: IEC 60601-2-25/-2-27/-2-49:2011 Clause 202.6.2.101 (electrosurgery interference); China YY1079:2008 Clause 5.2.8.13; AAMI EC13:2002 Clause 5.2.9.14 (ESIO/ESIS). Test fixture power rating: >300 W. Resistor inductance: <5 μH. Frequency range: DC to 100 MHz. Power resistors: non-inductive, ±5% tolerance, TCR ±100 ppm/°C, 200 W per piece. Skin impedance simulation: resistor 51 kΩ ±5%; capacitor 47 nF ±5% (C0G). ECG simulator (Module B): amplitude 1 mV ±10%; pulse width 75 ms ±10%; rate 73 ±3 bpm.

Ordering Information
Part No.: 100-HF00101. Model: HFCN — High-frequency coupling network test fixture for electrosurgery interference testing. Standard package: test module A, test module B, and a breakout box (BB-C1).

Optional Calibration Service and Warranty Extension
Part No.: YY0007 — Model C3: 3-year calibration service (calibration interval 1 year). Part No.: YY0008 — Model R3: warranty extension from 1 year to 3 years.

Technical specifications

• Standards coverage: IEC 60601-2-25/-2-27/-2-49:2011 Clause 202.6.2.101; China YY1079:2008 Clause 5.2.8.13; AAMI EC13:2002 Clause 5.2.9.14 (ESIO/ESIS)
• Power rating: >300 W
• Resistor inductance: <5 μH
• Frequency range: DC to 100 MHz
• Power resistors: non‑inductive, tolerance ±5%, TCR ±100 ppm/°C, 200 W per piece
• Skin impedance simulation: 51 kΩ resistor (±5%), 47 nF capacitor (±5%, C0G)
• ECG simulator (Module B): 1 mV ±10% amplitude; 75 ms ±10% pulse width; 73 ±3 bpm rate
• Package: test module A, test module B, breakout box (BB-C1)
