Overview

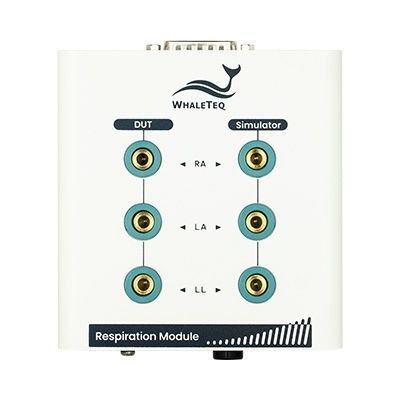

The Respiration Module extends the impedance respiratory signal simulation capability of the SECG 5.0 AIO Multi Vital Sign Simulator to support wider baseline and higher-resolution variation testing. It is intended for verification and validation of patient monitor respiratory measurement algorithms and signal-processing systems.

Highlights

• Extends SECG 5.0 AIO respiratory baseline range from 500Ω–2500Ω to 100Ω–4500Ω.
• Improves impedance variation resolution to 0.0Ω–10.0Ω (minimum step 0.05Ω within 0.0Ω–5.0Ω).
• Raw data playback: loads and plays clinically recorded or user-defined waveforms. Note: respiration simulation supported only in ECG mode on SECG 5.0 AIO.

Ordering & Package Contents

• Part No.: 100-EC00006
• Model No.: Respiration module
• Model Name: Respiration Module
• Package contents: Respiration module x1; Compound Terminal x5; BNC cable (banana male to banana male, 31.5cm, red) x3; BNC cable (banana male to banana male, 31.5cm, black) x1; DB15 cable (male to female, 30cm) x1; Grounding cable (alligator clip to ring terminal, 100cm) x1

Respiration Parameters (summary)

• Rate: 1–200 BrPM (step 1 BrPM)
• Inspiration:expiration ratio: 1:1, 1:2, 1:3, 1:4, 1:5
• Impedance variations (ΔΩ): 0.0–5.0Ω (step 0.05Ω); 5.0–10.0Ω (step 0.1Ω)
• Variation accuracy: ±(2% of setting + 0.1Ω)
• Impedance baseline selectable: 100, 200, 500, 1000, 1500, 2000, 2500, 3000, 3500, 4000, 4500 Ω
• Baseline accuracy: ±2%
• Respiration leads: RA, LA, LL
• Apnea selection: 1–60 sec./min.
• Noise add-on options: 50, 60, 100, 120, 150, 180, 200, 240 Hz; white noise
• Amplitude: 0.01–5 mV (step 0.01 mV)
• Raw data playback sample rate: up to 10 kHz (supports combined ECG waveforms and impedance respiratory signals)
• Wave modulation (baseline / amplitude / frequency): 0–16% (step 1%)

Optional Accessories (from ordering information)

• K22-0300201 — BNC cable (banana male to banana male) (31.5cm) (red)
• K22-0300301 — BNC cable (banana male to banana male) (31.5cm) (black)
• K28-0300301 — DB15 cable (male to female) (30cm)
• K29-1000801 — Grounding cable (alligator clip to ring terminal) (100cm)
• N54-0120013 — Compound terminal

Technical specifications

• Part Number: 100-EC00006
• Model Name: Respiration Module
• Compatible product: SECG 5.0 AIO Multi Vital Sign Simulator (respiration simulation supported in ECG mode)
• Respiration rate range: 1–200 BrPM (step 1 BrPM)
• Inspiration:expiration ratios supported: 1:1, 1:2, 1:3, 1:4, 1:5
• Impedance baseline values: 100–4500 Ω (selectable)
• Impedance variation resolution: 0.0–5.0Ω (0.05Ω steps); 5.0–10.0Ω (0.1Ω steps)
• Variation accuracy: ±(2% of setting + 0.1Ω)
• Baseline accuracy: ±2%
• Respiration leads supported: RA, LA, LL
• Apnea selection: 1–60 sec./min.
• Noise add-on options and white noise selectable
• Signal amplitude range: 0.01–5 mV (step 0.01 mV)
• Raw data playback sample rate: up to 10 kHz
• Wave modulation: baseline/amplitude/frequency 0–16% (step 1%)
• Package includes: Respiration module x1; Compound Terminal x5; BNC cables (red x3, black x1); DB15 cable x1; Grounding cable x1
