Overview
Software for automated comparison of ECG test results against CTS and CSE reference databases to support verification of ECG algorithm compliance with IEC 60601-2-25 and YY 0782. Engineers import formatted test outputs and obtain fast, exportable comparison reports for validation and traceability.

Functions

• CTS and CSE database comparison (CTS amplitude, interval & duration; CSE intervals).
• Accepts both digital and analog test data inputs.
• Direct import of formatted test values (no manual re-entry).
• One-click automated comparison with pass/fail indication versus reference values.
• Exportable comparison reports (RTF/MS Word compatible) for documentation.

Highlights

• Three-step workflow: select test item and data type, import test values, run one-click comparison.

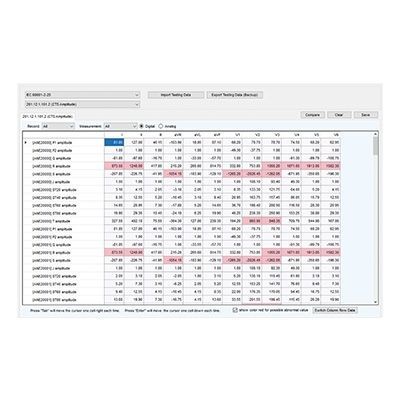

• Results shown in tables with file name, database parameter, per-lead comparisons and pass/fail status including reference and test values.
• Two table views: single database file or single parameter across leads.
• Enables export of results for recordkeeping and monitoring algorithm performance over time.

Specification (table)

• Category: Detail
• Supported Standards: IEC 60601-2-25:2011, YY 0782-2010
• Supported Databases: CTS, CSE
• Supported Test Options – CTS Amplitude: P1 amplitude, P2 amplitude, P amplitude, Q amplitude, R amplitude, S amplitude, J amplitude, ST20 amplitude, ST40 amplitude, ST60 amplitude, ST80 amplitude, T amplitude
• Supported Test Options – CTS Interval & Duration Absolute: P Duration, PR Interval, QRS Duration, QT Interval, Q Duration, R Duration, S Duration
• Supported Test Options – CSE Global Intervals: P Duration, PR Interval, QRS Duration, QT Interval
• Supported Test Options – CSE Against NOISE (YY0782): P Duration, QRS Duration, QT Interval, 50 Hz noise, 60 Hz noise, High frequency noise, Baseline noise
• Supported Reports: CTS Amplitude Analog Testing Report; CTS Amplitude Digital Testing Report; CTS Absolute Interval and Duration Analog Testing Report; CTS Absolute Interval and Duration Digital Testing Report; CSE Global Intervals Testing Report; CSE Against NOISE Analog Testing Report; CSE Against NOISE Digital Testing Report
• Supported Report Export Format: RTF (MS Word compatible)

Ordering
Part No.: HB0-CD00099 — Model: CDCA; CTS / CSE medical database comparison software

Technical specifications

• Compliant standards: IEC 60601-2-25:2011 and YY 0782-2010
• Supported databases: CTS and CSE
• Test types: CTS amplitude, CTS interval & duration (absolute), CSE global intervals, CSE noise tests (50 Hz, 60 Hz, high frequency, baseline)
• Data input: supports digital and analog formatted test result imports
• Comparison method: automated one-click comparison displaying pass/fail with reference and test values in tabular form
• Report export: RTF (MS Word compatible)
• Part number: HB0-CD00099; Model: CDCA
