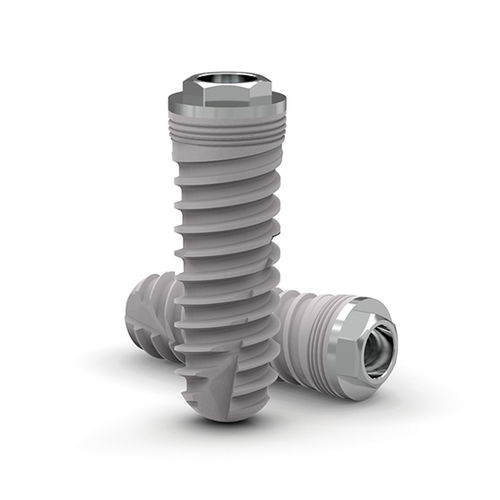

Titanium dental implant ZM4®
external hexagonstraightself-tapping

titanium dental implant
titanium dental implant
Add to favorites
Compare this product


external hexagon
Implant diameter

Max.: 5 mm (0.2 in)

Min.: 3.3 mm (0.13 in)

Implant length

8.5 mm, 10 mm, 11.5 mm, 13 mm, 14.5 mm (0.33 in)


ZM4® FEATURES •Morphology: cylindrical •Material: titanium •Connection: external hexagon • Implant lengths: 8.5 mm, 10 mm, 11.5 mm, 13 mm, 14.5 mm •Implant diameters: 3.30 mm, 3.70 mm, 4.00 mm, 4.30 mm, 4.60 mm, 5.00 mm •Available platforms: 3.30 mm, 4.10 mm, 5.00 mm Main features Connection ZM4 External hexagonal connection: simplicity and versatility. Upper screw canal: facilitates the insertion of the screws. Cortical area Mechanised ring (0,4mm): allows to raise the prosthetic gap according to the crestal bone in medium-thick biotypes; avoiding to expose the treated surface in irregular crest. Micro-threads design: preserves the marginal bone. Micro-threads extension: improves load distributions. Macro-design: makes an appropriate cortical compression. Body Double lead thread of reduce angle: provide stability during insertion and increase bone implant contact (BIC). Macro-design: quick insertion and surgical time reduction. Active apex (self-tapping): facilitates insertion in under drilling. Apical vents: collect bone detritus during the insertion. Optimized morphology: high primary stability. Atraumatic apex: protects anatomical structures.
