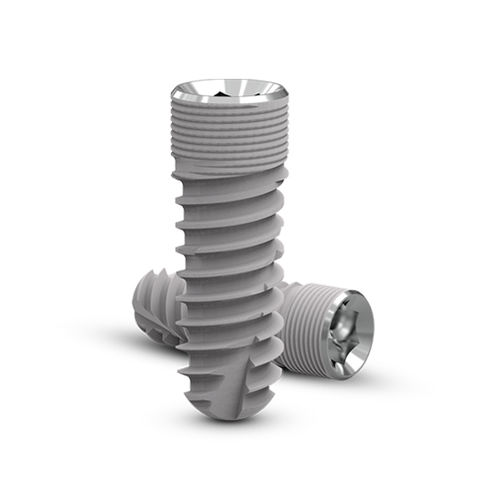

Titanium dental implant Zinic®

internal hexagonstraightcortical

Zinic® FEATURES •Morphology: cylindrical •Material: titanium •Connection: internal hexagon •Implant lengths: 8.5 mm, 10 mm, 11.5 mm, 13 mm, 14.5 mm •Implant diameters: 3.30mm, 3.70mm, 4.00mm, 4.30mm, 4.60mm, 5.00mm •Available platforms: 3.20mm, 3.50 mm, 4.50mm CONNECTION » Internal hexagonal connection » 1.5mm prosthetic hexagon depth: improves longitudinal forces distribution » Conical bevel: reduces infiltration » Friction fit: reduces micro-movements » Platform switch: soft tissue formation and emergence profile shaping CORTICAL AREA » Micro-thread design: preserves marginal bone » Micro-thread extension: improves load distributions » Macro-design: excellent cortical compression » 0.2mm mechanised area on bevel BODY » Reduced angle lead threads: provide stability during insertion and increase BIC (bone-implant contact) » Double lead thread: quick insertion and reduction of surgical time » Active apex (self-tapping): makes the implant insertion easy with undersized drilling technique » Transversal apical vents: collect bone detritus during the insertion » Optimised morphology: high primary stability » Atraumatic apex: protects anatomical structures
