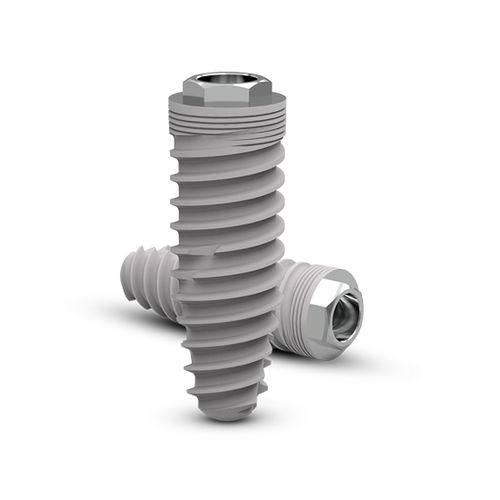

Conical dental implant ZM1®
titaniumexternal hexagon

conical dental implant
conical dental implant
Add to favorites
Compare this product


Characteristics

Shape
conical
Material
titanium
Connection
external hexagon
Implant diameter

3.6 mm, 4 mm, 4.4 mm, 4.8 mm (0.14 in)

Implant length

8.5 mm, 10 mm, 11.5 mm, 13 mm (0.33 in)

Description

ZM1® FEATURES •Morphology: conical •Material: titanium •Connection: external hexagon •Implant diameters: 3.6 mm, 4 mm, 4.4 mm, 4.8 mm • Implant lengths: 8.5 mm, 10 mm, 11.5 mm, 13 mm •Available platforms: 4.10mm, 5.00mm CONNECTION » External hexagonal connection: simplicity and versatility » Upper screw canal: facilitates screws insertion CORTICAL AREA » Micro-thread design: preserves marginal bone » Micro-thread extension: improves load distributions » Macro-design: excellent cortical compression BODY » Reduced angle lead threads: provide stability during insertion and increase BIC (bone-implant contact) » Double lead thread: quick insertion and reduction of surgical time » Active apex (self-tapping): makes the implant insertion easy with undersized drilling tech-nique » Transversal apical vents: collect bone detritus during the insertion » Optimised morphology: high primary stability » Atraumatic apex: protects anatomical structures CONICAL DESIGN •Facilitates bone shaping at low density •Suitable for immediate loading •For cases of convergence and/or apical collapse
