Catheter guidewire CHIKAI

neurovascularhydrophilic

Overview

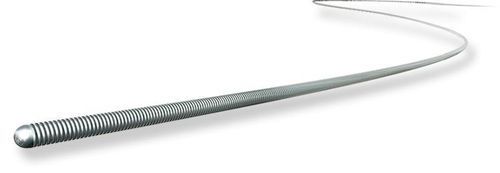

ASAHI CHIKAI is a 0.014" (0.36 mm) neurovascular guidewire designed to provide precise torque response and lumen support during neuro-interventional procedures. Available with straight or round-curve tip and in 200 cm or 300 cm usable lengths.

Technology
ACT ONE multi-wire coil technology integrates advanced wire drawing, forming and torque transmission techniques. ACT ONE balances torque force, torque response, durability and shaft rigidity to optimize maneuverability in microcatheters and target vessels.

Product specifications

• Shaft outer diameter: 0.36 mm (0.014")
• Tip shape: Straight or round curve
• Usable length: 200 cm or 300 cm
• Coil length: 30 cm
• Radiopaque length: 5 cm
• Hydrophilic coating length: 170 cm

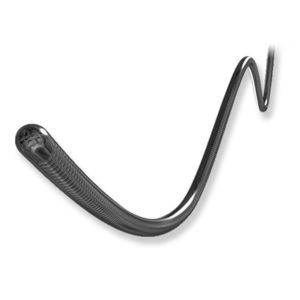

• Structure: Multi-component guidewire structure (see illustration on product page)

Order Information

• ASAHI CHIKAI — Catalog No. WAIN-CKI-200 — Usable Length: 200 cm — Outer Diameter: 0.36 mm (0.014") — Coil Length: 30 cm — Radiopaque Length: 5 cm — Tip Shape: Straight — Hydrophilic Coating Length: 170 cm
• ASAHI CHIKAI — Catalog No. WAIN-CKI-200-RC — Usable Length: 200 cm — Outer Diameter: 0.36 mm (0.014") — Coil Length: 30 cm — Radiopaque Length: 5 cm — Tip Shape: Round curve — Hydrophilic Coating Length: 170 cm
• ASAHI CHIKAI — Catalog No. WAIN-CKI-300 — Usable Length: 300 cm — Outer Diameter: 0.36 mm (0.014") — Coil Length: 30 cm — Radiopaque Length: 5 cm — Tip Shape: Straight — Hydrophilic Coating Length: 170 cm
• ASAHI CHIKAI — Catalog No. WAIN-CKI-300-RC — Usable Length: 300 cm — Outer Diameter: 0.36 mm (0.014") — Coil Length: 30 cm — Radiopaque Length: 5 cm — Tip Shape: Round curve — Hydrophilic Coating Length: 170 cm

Technical characteristics

• Shaft outer diameter: 0.36 mm (0.014")
• Tip shape: Straight or round curve
• Usable length: 200 cm or 300 cm
• Coil length: 30 cm
• Radiopaque length: 5 cm
• Hydrophilic coating length: 170 cm
• Structure: Multi-component guidewire (illustrated on product page)
