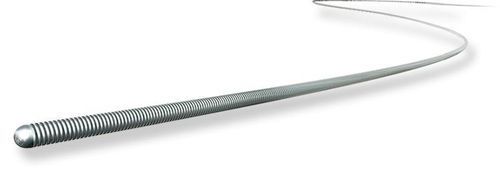

Catheter guidewire CHIKAI 008

neurovascularhydrophilicsteerable

Product overview
ASAHI CHIKAI 008 is a 0.008" (0.20/0.26 mm) neurovascular guidewire designed to deliver precise torque response and reliable vessel support for neurointerventional procedures. Its straight tip and long hydrophilic coating facilitate distal navigation and microcatheter exchanges.

Technology
ACT ONE: a multi-wire coil technology combining proprietary wire drawing, forming and torque control processes. ACT ONE optimizes the balance of torque force, torque response, durability and shaft rigidity to enhance steerability in tortuous cerebral anatomy.

Technical specifications

• Product name: ASAHI CHIKAI 008
• Model / Catalog No.: WAIN-CKI-008-200
• Shaft outer diameter: 0.20 / 0.26 mm (0.008 / 0.010 in)
• Tip shape: Straight
• Usable length: 200 cm
• Coil length (radiopaque): 9 cm
• Radiopaque length: 9 cm
• Hydrophilic coating length: 180 cm
• Structure: see product structure illustration
• Category: Guidewire; 0.008 in
• Technology: ACT ONE (multi-wire coil optimizing torque force, torque response, durability and rigidity)

Ordering information

• Product name: ASAHI CHIKAI 008
• Catalog No.: WAIN-CKI-008-200
• Usable length: 200 cm
• Outer diameter: 0.20 / 0.26 mm (0.008 / 0.010 in)
• Coil / radiopaque length: 9 cm
• Tip shape: Straight
• Hydrophilic coating length: 180 cm
