Catheter guidewire CHIKAI 10

neurovascularhydrophilic

Product overview

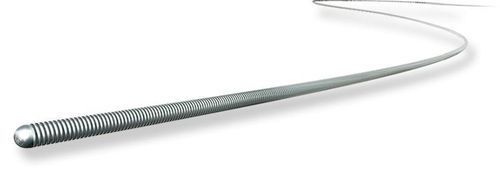

ASAHI CHIKAI 10 is a 0.010" (0.26 mm) guidewire developed for neurointerventional procedures. It provides balanced torque response and catheter support to assist safe microcatheter navigation in tortuous vasculature.

Technology
ACT ONE: This multi-wire coil technology by ASAHI INTECC optimizes wire drawing, forming and torque transmission. ACT ONE balances torque force, torque response, durability and rigidity to improve handling during complex neurovascular interventions.

Product Spec
Tip Outer Diameter: 0.26 mm (0.010")
Tip Shape: Straight
Usable Length: 200 cm / 300 cm
Structure: Multi-wire coil (ACT ONE)
Category:

• #Guidewire
• #0.010"

Order Information
Columns: Product Name | Catalog No. | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Tip Shape | Hydrophilic Coating Length
ASAHI CHIKAI 10 | WAIN-CKI-10-200 | 200cm | 0.26 mm (0.010") | 9.5cm | 3cm | Straight | 170cm
ASAHI CHIKAI 10 | WAIN-CKI-10-300 | 300cm | 0.26 mm (0.010") | 9.5cm | 3cm | Straight | 170cm

Notes
“ASAHI”, “CHIKAI” and “ACT ONE” are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.

Technical specifications

• Tip outer diameter: 0.26 mm (0.010")
• Tip shape: Straight
• Available usable lengths: 200 cm and 300 cm
• Coil length: 9.5 cm
• Radiopaque length: 3 cm
• Hydrophilic coating length: 170 cm
• Catalog numbers: WAIN-CKI-10-200 (200 cm), WAIN-CKI-10-300 (300 cm)
• Structure: Multi-wire coil (ACT ONE technology applied to balance torque, durability and rigidity)
