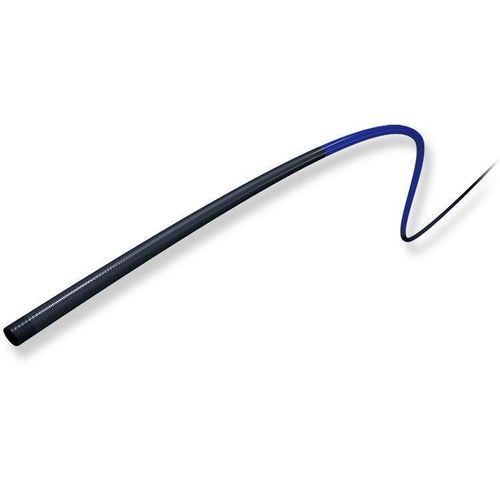

Guiding catheter FUBUKI

neurovascularatraumatic tiphydrophilic

Overview
A high-performance line of neurovascular guiding catheters available in 6Fr, 7Fr and 8Fr sizes for stable vascular access during endovascular procedures.

Tagline
Stable platform for neurovascular interventions

Key features

• Flexibility: Soft tip and flexible distal shaft minimize vessel injury during navigation.
• Pushability: Well-balanced shaft with graduated rigidity provides controlled pushability and stable deployment.
• Lubricity: Hydrophilic coating from the tip to 15 cm (5 cm for certain 8Fr variants) enables smooth advancement across the aortic arch and ostia.
• Visibility: Radiopaque marker on the tip (platinum) and radiopaque material in the shaft enhance fluoroscopic visualization.

Product Spec
French Size: 6Fr / 7Fr / 8Fr
Shape: Angled / Straight
Shaft Inner Diameter: 1.80 mm (0.071") / 2.05 mm (0.081") / 2.28 mm (0.090")
Usable Length: 80 cm / 90 cm / 100 cm / 110 cm
Coating Length: 15 cm (6Fr/7Fr variants) / 5 cm (8Fr variants)
Structure: (illustration of device structure available in product materials)
Category: Guiding catheter

Order Information
Table columns: Product Name — Catalog No. — French — Shape — Usable Length — Coating Length — Shaft (I.D)
ASAHI FUBUKI — WAIN-FBK-6A — 6Fr — Angled — 90cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-6S — 6Fr — Straight — 90cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-6A80 — 6Fr — Angled — 80cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-6S80 — 6Fr — Straight — 80cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-6AL — 6Fr — Angled — 100cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-6SL — 6Fr — Straight — 100cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-6A110 — 6Fr — Angled — 110cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-6S110 — 6Fr — Straight — 110cm — 15cm — 1.80mm (0.071")
ASAHI FUBUKI — WAIN-FBK-7A — 7Fr — Angled — 90cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-7S — 7Fr — Straight — 90cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-7A80 — 7Fr — Angled — 80cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-7S80 — 7Fr — Straight — 80cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-7AL — 7Fr — Angled — 100cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-7SL — 7Fr — Straight — 100cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-7A110 — 7Fr — Angled — 110cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-7S110 — 7Fr — Straight — 110cm — 15cm — 2.05mm (0.081")
ASAHI FUBUKI — WAIN-FBK-8S — 8Fr — Straight — 90cm — 5cm — 2.28mm (0.090")
ASAHI FUBUKI — WAIN-FBK-8S80 — 8Fr — Straight — 80cm — 5cm — 2.28mm (0.090")
ASAHI FUBUKI — WAIN-FBK-8SL — 8Fr — Straight — 100cm — 5cm — 2.28mm (0.090")
ASAHI FUBUKI — WAIN-FBK-8S110 — 8Fr — Straight — 110cm — 5cm — 2.28mm (0.090")

Notes
“ASAHI” and “FUBUKI” are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
