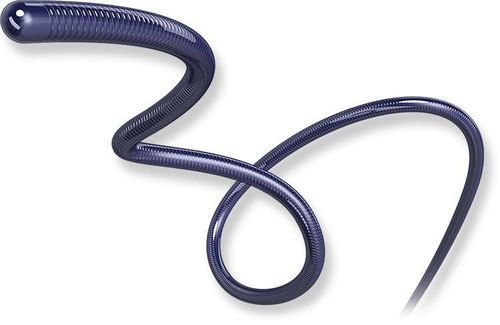

Catheter guidewire CHIKAI X 010

neurovascularhydrophilic

Overview
Designed for navigation in distal and small-caliber vessels, the ASAHI CHIKAI X 010 offers enhanced flexibility to reduce vessel-wall resistance and improved torque response for precise steering.

Product specifications
Tip Outer Diameter: 0.26mm (0.010")
Tip Shape: Straight (Product Spec)
Usable Length: 200cm
Structure: multi-component guidewire structure (illustrated structure image available on product page)
Category: Guidewire / 0.010"

Order information
Product Name: ASAHI CHIKAI X 010
Catalog No.: AIN-CKX-10-200-R
Usable Length: 200cm
Outer Diameter: 0.26mm (0.010")
Coil Length: 16cm
Radiopaque Length: 16cm
Tip Shape: Re-shapeable round curve (Order Info)
Polymer Jacket Length: 150cm
Hydrophilic Coating Length: 180cm

Technical features

• Tip Outer Diameter: 0.26mm (0.010")
• Tip Shape: Straight (Product Spec) — Re-shapeable round curve (Order Info)
• Usable Length: 200cm
• Catalog No.: AIN-CKX-10-200-R
• Coil Length: 16cm
• Radiopaque Length: 16cm
• Polymer Jacket Length: 150cm
• Hydrophilic Coating Length: 180cm
• Structure: multi-component guidewire structure (structure image provided on product page)
• Category: Guidewire, 0.010"
