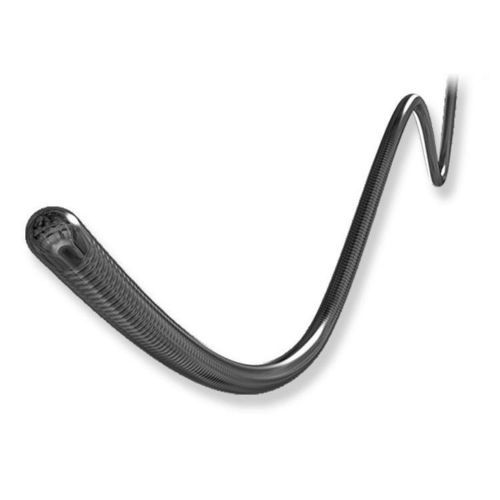

Catheter guidewire CHIKAI black/14 soft tip

neurovascularhydrophilicsteerable

Product overview
Provides support with reduced friction thanks to a polymer jacket and hydrophilic coating, enabling smooth microcatheter delivery and manipulation in tortuous anatomy.

Key features

• Great torque response: ACT ONE construction delivers responsive torque transmission in tortuous vessels.
• Tip flexibility: Atraumatic tip and flexible distal shaft reduce friction against the vessel wall for safer navigation and improved steerability.
• 43% softer tip: CHIKAI black 14 Soft tip offers 43% greater flexibility at the tip compared with the conventional CHIKAI black 14.

Technology
ACT ONE: Multi-wire coil manufacturing optimized for wire drawing, forming and torque. ACT ONE balances torque force, torque response, durability and rigidity for high-performance guidewires used in microcatheter procedures.

Product Spec
Outer Diameter: 0.36 mm (0.014 in)
Tip Shape: Round curve
Polymer Jacket Length: 150 cm
Usable Length: 200 cm
Structure: (structure image available on product page)
Category: Guidewire; 0.014 in

Order Information
ASAHI CHIKAI black — Catalog No.: WAIN-CKI-200-BS — Usable Length: 200 cm — Outer Diameter: 0.36 mm (0.014 in) — Coil Length: 30 cm — Radiopaque Length: 3 cm — Tip Shape: Round curve — Polymer Jacket Length: 150 cm — Hydrophilic Coating Length: 170 cm
ASAHI CHIKAI black — Catalog No.: WAIN-CKI-200-BA — Usable Length: 200 cm — Outer Diameter: 0.36 mm (0.014 in) — Coil Length: 30 cm — Radiopaque Length: 3 cm — Tip Shape: Angled 90° — Polymer Jacket Length: 150 cm — Hydrophilic Coating Length: 170 cm
ASAHI CHIKAI black 14 Soft tip — Catalog No.: AIN-CKI-200-B-SFT — Usable Length: 200 cm — Outer Diameter: 0.36 mm (0.014 in) — Coil Length: 30 cm — Radiopaque Length: 3 cm — Tip Shape: Round curve — Polymer Jacket Length: 150 cm — Hydrophilic Coating Length: 170 cm

Technical specifications

• Brand: ASAHI INTECC
• Commercial name: ASAHI CHIKAI black/14 Soft tip
• Outer Diameter: 0.36 mm (0.014 in)
• Usable Length: 200 cm
• Polymer Jacket Length: 150 cm
• Coil Length: 30 cm
• Radiopaque Length: 3 cm
• Hydrophilic Coating Length: 170 cm
• Tip Shape: Round curve (also available Angled 90° variant)
• Structure: multi-component structure (structure illustration available on product page)
• Technology: ACT ONE multi-wire coil for optimized torque force/response, durability and rigidity
