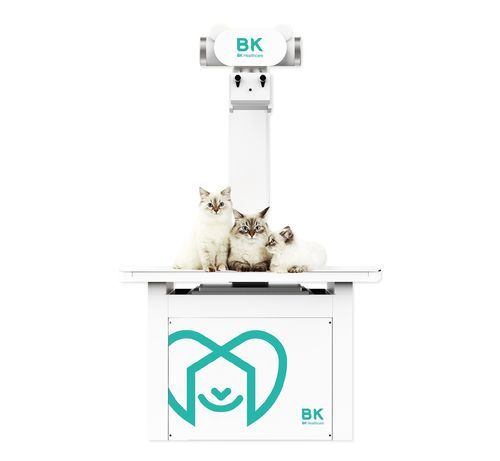

Digital veterinary X-ray system Model 3

Key Features

• Compact veterinary digital radiography system designed for installation in confined spaces
• Low-radiation intelligent zoning to optimize exposure
• High-definition 17"×17" imaging with 139 μm pixel size for detailed diagnostic images
• User-friendly acquisition workflow — quick to learn and operate in clinical environments
• Space-saving fixed pet bed with advanced compact laminate surface

Dimensions
Dimensions (Length × Width × Height): 1200 × 720 × 1860 mm

Technical specifications

• Flat panel detector: iRay Venu 1717XV (Cesium iodide, amorphous silicon a‑Si); imaging size 17" × 17"
• Pixel size / matrix: 139 μm / 2912 × 2912; A/D conversion: 16-bit
• High-voltage generator: supply voltage 220 V; nominal power 32 kW; maximum 125 kV / 400 mA
• X-ray tube: Canon E7239X; focal spot: 1.0 mm / 2.0 mm; anode heat capacity: 140 kHU; focus power: large 42.5 kW, small 21 kW
• Bed: advanced compact laminate (wear-resistant, scratch-resistant, waterproof); fixed bedface size 1200 mm × 600 mm; weight capacity ≤ 150 kg
• Software: dedicated veterinary imaging and processing software for clinical workflows

Applications
Suitable for veterinary clinics and mobile veterinary units requiring high-resolution digital radiography in limited spaces. Designed for easy integration into clinical workflows and PACS.
