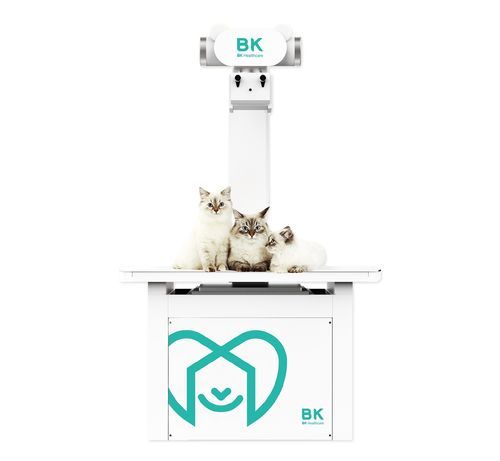

Digital veterinary X-ray system Model 3 Evo-Ultra

with table

Overview
Model 3 Evo-Ultra is a veterinary digital radiography system designed for clinical imaging of small and medium animals. It combines a 17×17 CsI flat panel detector, a high-power X-ray generator and a Canon E7876X tube with an integrated motorized veterinary exam table and 23.8" HD monitor for efficient workflow.

Key features

• iRay Venu 1717XV 17×17" flat panel detector with CsI a-Si technology
• High-power static high voltage generator (50kW) with 220V supply
• Canon E7876X X-ray tube, dual focal spots 0.6/1.2 mm
• Real-time collimator with object thickness display
• Veterinary-specific 4-way motorized exam table (1200×600 mm) with ≤150 kg load capacity
• 23.8" high-definition monitor for image review

Technical specifications

• Flat Panel Detector: iRay Venu 1717XV
• Detector Technology: Cesium Iodide amorphous silicon (a-Si)
• Imaging Size: 17×17 inches
• Pixel Size: 139 μm
• Pixel Matrix: 2912×2912
• A/D Conversion: 16 bits
• Spatial Resolution: 3.6 lp/mm
• Power Supply Voltage: 220 V
• Power Rating: 50 kW
• Maximum kV: 150 kV
• Maximum mA: 630 mA
• X-ray Tube: Canon E7876X
• Focal Spot Size: 0.6 / 1.2 mm
• Tube Anode Heat Capacity: 230 kHU
• Focal Spot Power: 50 kW (large), 20 kW (small) @ 50 Hz
• Collimator: Real-time object thickness display

Table and ergonomics

• Table Surface Material: High-grade compact laminate (wear-resistant, scratch-resistant, waterproof)
• Table Movement: 4-way motion (Lateral ±300 mm, Longitudinal ±130 mm)
• Table Surface Dimensions: 1200 mm × 600 mm
• Table Load Capacity: ≤150 KG

Clinical applications
Suited for routine veterinary radiography including orthopedics, thoracic and abdominal imaging in small and medium-sized animals. The configuration supports fast acquisition and reliable image quality for diagnostic workflows.

Options & service

• Integrated 23.8" HD monitor for acquisition and review
• Optional software and service packages available via local distributor
