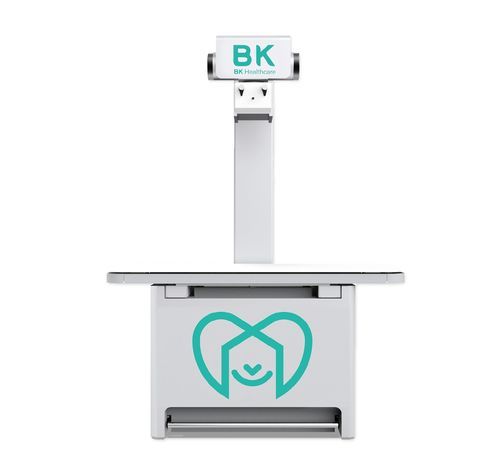

Digital veterinary X-ray system Model 1
with table

Digital veterinary X-ray system - Model 1 - Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. - with table
Digital veterinary X-ray system - Model 1 - Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. - with table
Add to favorites
Compare this product
Go to the Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. website for more information

Characteristics

Technology
digital
Ergonomics
with table

Description

Product overview
  • Digital radiography system designed for veterinary clinics, suitable for small and medium animals.
  • Universal DR configuration with adjustable imaging parameters for clinical workflows.


Key features
  • 17×17 in Cesium iodide (CsI) amorphous silicon (a‑Si) flat panel detector.
  • 2912×2912 pixel matrix, 139 μm pixel size, 16‑bit A/D conversion.
  • High-voltage generator with 32 kW nominal power, up to 125 kV and 400 mA.
  • Canon X‑ray tube: selectable focus sizes 1.0 mm / 2.0 mm; anode heat capacity 140 kHU.
  • Four-way movable pet bed (1400×720 mm) with Advanced Combet surface and ≤150 kg load capacity.
  • Imaging and processing software with AI-assisted diagnostic tools for veterinary use.


Dimensions
Dimensions (L×W×H): 1400×900×1940 mm

Technical specifications
  • Detector: CsI a‑Si flat panel; imaging size 17×17 in; pixel size 139 μm; matrix 2912×2912; A/D: 16 bit.
  • Supply voltage: 220 V; nominal power: 32 kW; maximum voltage: 125 kV; maximum current: 400 mA.
  • X‑ray tube (Canon): focus 1.0 mm / 2.0 mm; anode heat capacity 140 kHU; focus power (50 Hz): large 42.5 kW, small 21 kW.
  • Pet bed: Advanced Combet surface (wear-, scratch- and water-resistant); four-way movable 1400×720 mm; load capacity ≤150 kg.


Software & accessories
  • Veterinary-focused imaging and processing software including image enhancement and AI-assisted analysis tools.
  • Standard delivery: flat panel detector, high-voltage generator, X‑ray tube, pet bed and workstation with dedicated software.
Go to the Bikang Tiancheng (Shanghai) Information Technology Co., Ltd. website for more information
