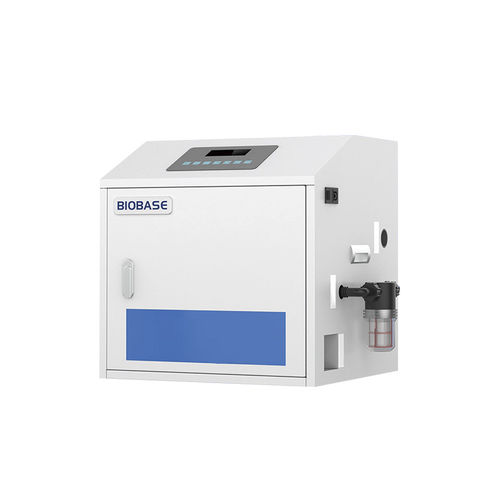

Healthcare facility effluent treatment system BK-SFS30H

for laboratoryfor hospital

Product
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-SFS30H

Application Field

• Medical center
• Physical and chemical inspection
• PCR laboratory
• Operating room
• Beauty center

Features

• Safety and sanitation: no need to add chemical agents for disinfection, reducing chemical handling in clinical environments.
• Intelligent monitoring: man–machine control system monitors wastewater quality and treatment process in real time, enabling continuous automatic operation without dedicated on‑site staff.
• Ozone sterilization: effective pathogen inactivation using ozone (500 mg/h); optional UV sterilization for secondary disinfection.
• Easy operation and maintenance: simple controls (Manual/Auto), stable operation, long service life and low operational costs.

Technical Parameters
Model: BK-SFS30H
Treated water volume: 30 L/h
Maximum lift: 25 m
Maximum suction: 8 m
Max flow: 1.8 m³/h
Control method: Manual/Auto; three control modes (cycle, single-level, double-level — optional)
Processing system: Primary treatment; ozone oxidation; UV sterilization (optional); sedimentation
Water input way: Imbibition inlet
Sterilization principle: Ozone sterilization, ozone capacity 500 mg/h
Power supply: Standard 220 V, 50/60 Hz; Optional 110 V, 50/60 Hz
Packing size (W*D*H): 595*555*715 mm
Gross weight: 33 kg

Characteristics / technical specifications

• Model: BK-SFS30H
• Treated water volume: 30 L/h
• Max flow: 1.8 m³/h
• Maximum lift: 25 m
• Maximum suction: 8 m
• Sterilization principle: Ozone (500 mg/h); UV optional
• Processing system: Primary treatment; ozone oxidation; UV sterilization (optional); sedimentation
• Control methods: Manual/Auto; cycle, single-level, double-level (optional)
• Power supply: 220 V, 50/60 Hz (standard); 110 V optional
• Packing size: 595*555*715 mm
• Gross weight: 33 kg
• Application fields: Medical center; Physical and chemical inspection; PCR laboratory; Operating room; Beauty center
