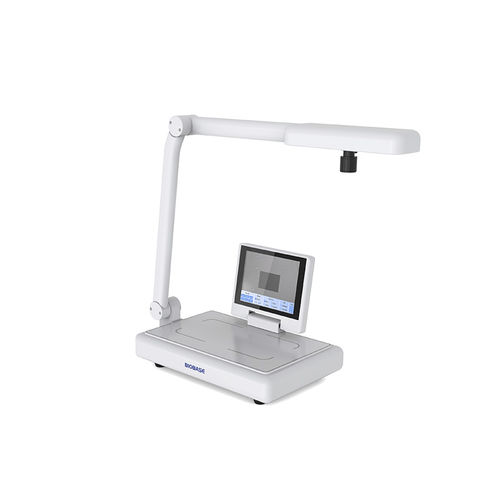

Infrared vein finder BK-VIA100

NIRnear-infraredvenipuncture

Introduction:
The BK-VIA100 vein finder projects a real-time digital image of subcutaneous blood vessels onto the screen to assist healthcare professionals in locating veins and reducing patient discomfort during venipuncture.

Principle of Imaging:
Oxyhemoglobin and deoxyhemoglobin absorb infrared light more strongly than surrounding tissues. The imager uses a dual-band infrared light source and a dedicated infrared camera; after photoelectric signal processing, a high-contrast vessel image is displayed on the 6.5-inch HD screen in real time.

Features:

• Dedicated infrared 5 million pixel HD camera for clear, low-latency imaging.
• Narrow-band infrared illumination (760–940 nm) enabling non‑invasive vascular visualization.
• 6.5-inch industrial HD display with advanced image processing.
• Multiple image and color enhancement modes to improve vein visibility and venipuncture success.
• Foldable, retractable support and freely flip-able screen for observation at different angles.
• Suitable for auxiliary observation and search of subcutaneous veins, venipuncture assistance, outpatient transfusion and related clinical applications.

Technical Parameters:
Model: BK-VIA100
Function: Observe and locate subcutaneous vessels; assist venipuncture
Display: 6.5-inch industrial HD display
Camera: Dedicated infrared 5 million pixel HD camera
Optimal operating distance: Adjustable focus
Light source: Dual 760–940 nm infrared light source
Operating system: Windows; vascular enhancement processing software
Image mode: Multiple color modes and image enhancement
Software functions: Image flip, enhance, freeze, video recording and playback
Language: Chinese and English
Interface: USB (export clinical images and video, software upgrade)
Power supply: AC 100–240V, 50/60Hz
Power consumption: 60W
External size (W*D*H): 500*240*210 mm
Net weight: 4 kg
Package size (W*D*H): 600*350*350 mm
Gross weight: 12 kg

Characteristics / technical specifications:

• Brand: BIOBASE
• Model: BK-VIA100
• Product origin: CHINA
• Display: 6.5-inch industrial HD
• Camera resolution: 5 million pixels (dedicated infrared HD)
• Light source wavelength: 760–940 nm dual-band
• OS & software: Windows with vascular enhancement processing software
• Interface: USB for export and software upgrades
• Power: AC 100–240V, 50/60Hz
• Consumption: 60 W
• Dimensions (W*D*H): 500*240*210 mm; Package: 600*350*350 mm
• Net weight / Gross weight: 4 kg / 12 kg
