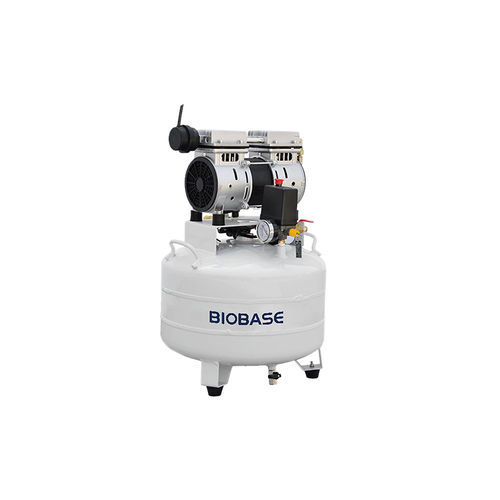

Dental compressor BKX-ZY series

for dental officespistonstationary

Introduction As the core device in dental diagnosis and treatment, the dental electric air compressor drives the compressor with an electric motor to generate high-pressure gas. It supplies stable, dry, oil-free compressed air to dental chairs, ultrasonic scalers, air polishers and other dental equipment, supporting routine treatments, surgical procedures and instrument cleaning/disinfection.

Product basics

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory direct supply
• Models: BKX-ZY100, BKX-ZY130, BKX-ZY200, BKX-ZY260, BKX-ZY400, BKX-ZYT600, BKX-ZYT800, BKX-ZYT1000

Features

• Premium imported components: imported leather cups and valve plates for long-term stable operation and reduced maintenance frequency.
• High-quality core configuration: pure copper air outlets for corrosion resistance and airtightness; matched with high-performance motors for efficient power output and low energy consumption.
• Intelligent pressure management: precise pressure control technology with automatic start-stop to maintain constant pressure and minimize energy waste.
• Customizable expansion: supports upgrades such as soundproof enclosures, high-efficiency air drying systems and multi-stage air filtration.

Technical parameters (table 1) Model | BKX-ZY100 | BKX-ZY130 | BKX-ZY200 | BKX-ZY260
Number of dental chairs | 1 unit | 2 units | 3 units | 4 units
Maximum air output | 100 L/min | 150 L/min | 200 L/min | 300 L/min
Air tank capacity | 24 L | 38 L | 60 L | 60 L
Pressure adjustment range | 0.55~0.8 MPa | 0.55~0.8 MPa | 0.55~0.8 MPa | 0.55~0.8 MPa
Air outlet | Φ8 | Φ8 | Φ8 | Φ8
Consumption | 550 W | 750 W | 550 W*2 | 750 W*2
Power supply | AC220V, 50Hz (standard); AC110V/220V, 60Hz (optional)
External size (W*D*H) mm | 450*450*580 | 450*450*750 | 750*420*680 | 750*420*720
Net weight (kg) | 26 | 28 | 48 | 50
Packing size (W*D*H) mm | 530*530*720 | 530*530*860 | 830*500*820 | 830*500*820
Gross weight (kg) | 28 | 30 | 53 | 55

Technical parameters (table 2) Model | BKX-ZY400 | BKX-ZYT600 | BKX-ZYT800 | BKX-ZYT1000
Number of dental chairs | 6~7 units | 8~9 units | 10~13 units | 13~15 units
Maximum air output | 400 L/min | 600 L/min | 800 L/min | 1000 L/min
Air tank capacity | 150 L | 150 L | 200 L | 200 L
Pressure adjustment range | 0.55~0.8 MPa | 0.55~0.8 MPa | 0.55~0.8 MPa | 0.55~0.8 MPa
Air outlet | Φ10 | Φ10 | Φ12 | Φ12
Consumption | 750 W*3 | 1100 W*3 | 1100 W*4 | 1100 W*5
Power supply | AC380V, 50Hz (standard); AC110V/220V/380V, 60Hz (optional); AC220V, 50Hz (optional)
External size (W*D*H) mm | 1350*430*850 | 1350*430*850 | 1730*430*850 | 1730*430*850
Net weight (kg) | 86 | 110 | 142 | 160
Packing size (W*D*H) mm | 1430*510*1020 | 1430*510*1020 | 1810*510*1020 | 1810*510*1020
Gross weight (kg) | 106 | 135 | 167 | 185

Specifications / technical summary

• Oil-free dry compressed air suitable for dental chairs, ultrasonic scalers, air polishers and instrument cleaning/disinfection.
• Pressure adjustment range: 0.55~0.8 MPa across the series.
• Air outlet diameters: Φ8 / Φ10 / Φ12 depending on model.
• Power options: standard AC220V 50Hz for small models; larger models standard AC380V 50Hz; multiple optional voltages available.
• Models cover single-chair units up to multi-chair configurations (1 up to 15 chairs depending on model).
• Optional upgrades: soundproof enclosures, high-efficiency air dryers, multi-stage filtration systems.
