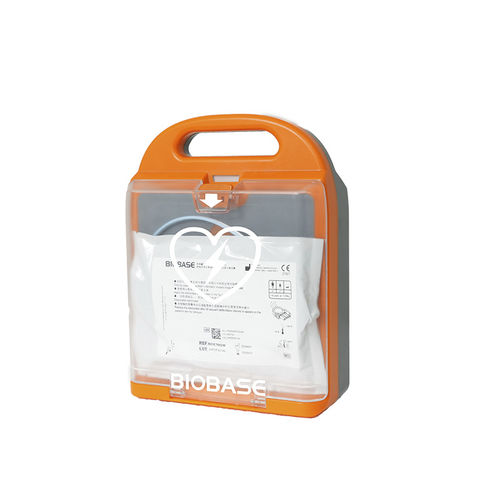

Semi-automatic external defibrillator BIO-AED-I

public accessfor public spacebiphasic

Brand
BIOBASE

Product origin
CHINA

Delivery time
Within 7 days

Supply capacity
Factory direct supply

Model
BIO-AED-I

Introduction
External defibrillators are essential emergency devices for defibrillation and cardiopulmonary resuscitation. The device delivers a controlled electrical pulse to terminate life‑threatening arrhythmias. The semi-automatic external defibrillator provides guided voice prompts, automatically analyzes for a shockable rhythm and selects appropriate shock parameters. It is suitable for emergency departments, transport hubs, schools, shopping centers and other public locations with high footfall.

Key features

• Automatic rhythm analysis with voice-guided operation
• One-key toggle between adult and child modes
• Biphasic truncated exponential waveform with automatic impedance compensation
• Regular self-test and status indicators

Parameters
Model: BIO-AED-I
Control type: Semi-automatic
Impedance compensation range: 25Ω–180Ω
Patient mode: Adult (≥ 25 kg or ≥ 8 years); Child (< 25 kg or < 8 years)
Discharge waveform: Biphasic truncated exponential, automatic compensation
Disposable defibrillation electrodes: Adult type; Child type (optional)
Battery: MnO2 lithium battery DC 12.0V, 4200 mAh
Number of shocks: ≥160 times (20°C ± 2°C)
Continuous monitoring duration: ≥450 minutes (20°C ± 2°C)
Shocks at low battery: ≥15 times after first low battery prompt (20°C ± 2°C)
Service life: Main unit 8 years; Battery 5 years; Electrodes ≥30 months
Registration certificate No.: National instrument registration No. 20243080989
Operating environment: 0 °C ~ 50 °C, 59% ~ 95% RH (no condensation), 57 kPa ~ 106 kPa
External size (W×D×H): 215 × 280 × 85 mm
Net weight: 1.9 kg
Package size (W×D×H): 335 × 345 × 150 mm
Gross weight: 3 kg

Available documentation
Semi-Automated External Defibrillator BIO-AED-I.pdf

Technical specifications

• Model: BIO-AED-I
• Control: Semi-automatic with voice prompts
• Impedance range: 25Ω–180Ω
• Waveform: Biphasic truncated exponential, automatic compensation
• Modes: Adult and Child (one-key toggle)
• Battery: DC 12.0V MnO2 lithium, 4200 mAh (estimated 5 years life)
• Shock capacity: ≥160 shocks (standard conditions)
• Continuous monitoring: ≥450 minutes
• Low battery shocks: ≥15 after first alert
• Dimensions: 215 × 280 × 85 mm; Net weight: 1.9 kg
• Operating conditions: 0–50 °C, 59%–95% RH (no condensation)
• Registration number: 20243080989
