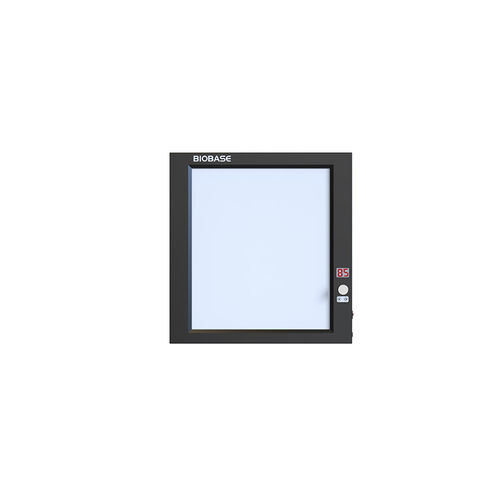

1-screen X-ray film viewer BH-GPD series

2-screen3-screen4-screen

Introduction
Automatic sensing film-viewing lamp designed for medical X-ray film inspection. When a film is inserted, the viewing area lights automatically. Suitable for radiology departments and clinics.

Key features

• Auto-sensing: insert to switch on, remove to switch off; brightness memory.
• LED color temperature >10000K to reduce eye fatigue during prolonged viewing.
• Brightness adjustable continuously from 1% to 100% with memory function.
• Imported Mitsubishi viewing panel resistant to deformation and discoloration.
• Aluminum alloy frame for rapid heat dissipation and stable LED performance.
• Ultra-bright LED cold light; maximum screen luminance >4500 cd/m².
• Soft silicone clamping device for secure film placement; installation: hanging standard, bracket optional.

Technical parameters
Model: BH-GPD01 / BH-GPD02 / BH-GPD03 / BH-GPD04
Type: BH-GPD01 – 1‑panel; BH-GPD02 – 2‑panel; BH-GPD03 – 3‑panel; BH-GPD04 – 4‑panel
LED color temperature: >10000K
Luminance uniformity: ≥0.8
Max luminance: >4500 cd/m²
Installation method: Standard – hanging; Optional – bracket
Auto-induction: auto on/off with film insertion/removal; brightness memory
Light source: LED cold light
Clamping device: soft silicone
External size (mm): BH-GPD01 – 475×498×25; BH-GPD02 – 835×498×25; BH-GPD03 – 1195×498×25; BH-GPD04 – 1555×498×25
Viewing area (mm): BH-GPD01 – 360×420; BH-GPD02 – 720×420; BH-GPD03 – 1080×420; BH-GPD04 – 1440×420
Power supply: AC100–240V, 50/60Hz
Packing size (mm): BH-GPD01 – 620×115×680; BH-GPD02 – 980×130×680; BH-GPD03 – 1350×130×680; BH-GPD04 – 1700×130×680
Gross weight (kg): BH-GPD01 – 4.7; BH-GPD02 – 9; BH-GPD03 – 10.3; BH-GPD04 – 12.2

Applications & supply

• Intended use: medical/hospital X-ray film viewing in radiology departments and clinics.
• Brand: BIOBASE
• Origin: CHINA; Delivery: within 7 days; Supply capacity: factory direct.
