FHR fetal monitor BK-TH-8A

fetal heart rate

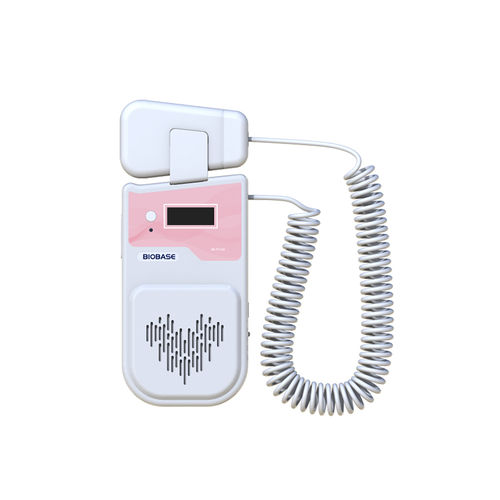

Overview Doppler Fetal Monitor BK-TH-8A is a compact, portable fetal heart rate monitoring device intended for detection of fetal heart rate and auscultation of fetal heart sounds in mid-to-late pregnancy. It uses intelligent noise-reduction technology to deliver clear fetal sounds and accurate, safe and reliable measurements, suitable for clinical obstetrics and home monitoring.

Quick Info

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BK-TH-8A

Features

• Compact, portable design for bedside and home use
• Intelligent noise reduction for clear fetal sound
• Accurate fetal heart rate detection and sound monitoring
• Suitable for mid and late pregnancy screening and monitoring

Technical Parameters (summary) Model: BK-TH-8A
Ultrasonic output intensity: 10 mW/cm2
Ultrasonic output power: 8 mW
Nominal acoustic operating frequency: 3.0 MHz
Measuring resolution: 1 bpm
Measuring accuracy: ≤±2 bpm
Operating atmospheric pressure range: 70~106 kPa
Ambient temperature range: 5~40℃
Relative humidity range: 30%~80%
Battery: DC 9.6V battery
Power supply: AC 100~240V, 50/60Hz
External size (W*D*H): 75*180*30 mm
Net weight: 260±20 g (including battery)
Packing size (W*D*H): 310*225*90 mm
Gross weight: 1.1 kg

Characteristics / Technical specifications

• Model: BK-TH-8A
• Ultrasonic output intensity: 10 mW/cm2
• Ultrasonic output power: 8 mW
• Nominal acoustic operating frequency: 3.0 MHz
• Measuring resolution: 1 bpm
• Measuring accuracy: ≤±2 bpm
• Operating atmospheric pressure range: 70~106 kPa
• Ambient temperature range: 5~40℃
• Relative humidity range: 30%~80%
• Battery: DC 9.6V
• Power supply: AC 100~240V, 50/60Hz
• External size: 75*180*30 mm
• Net weight: 260±20 g (including battery)
• Packing size: 310*225*90 mm
• Gross weight: 1.1 kg
