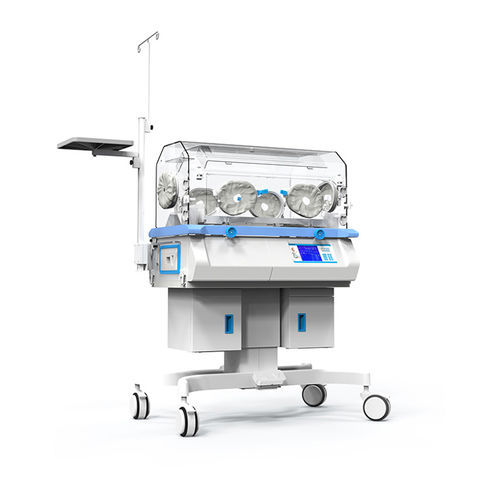

Height-adjustable neonatal incubator BK-3201

with monitorwith storage compartmentelectric

Overview
The BK-3201 infant incubator is a neonatal care device designed for thermoregulation, oxygen therapy and clinical monitoring of sick and premature newborns. It is suitable for use in hospitals, neonatal units and maternity wards where controlled temperature, humidity and oxygen delivery are required.

Product details

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply: Factory direct
• Model: BK-3201

Key features

• LCD display with clear parameter readout
• Dual temperature control modes: bed (air) temperature and skin temperature
• Double-layer thermostatic cover with automatic air‑curtain device
• Humidity control with 1500 ml water tank
• Air & oxygen blender and integrated oxygen supply system
• Infinitely adjustable baby cot (height/positioning)
• Comprehensive audible and visual alarms (24 types)

Technical specifications

• Power supply: AC220V 50/60Hz (standard), AC110V 60Hz (optional); rated ~1320 VA
• Dimensions (L×W×H): 950×645×(1250~1450) mm
• Heater outputs: Air chamber 330 W; Water tank heater 155 W
• Bed temperature control range: 25.0–37.0℃ (normal); 37.1–39.0℃ (span)
• Skin temperature control range: 34.0–37.0℃ (normal); 37.1–38.0℃ (span); sensor accuracy ±0.3℃
• Humidity display/control: 0–99%RH display; control accuracy ±10%; tank 1500 ml (>24 h operation at <70%RH)
• Oxygen display/control: 0–99% display (1% resolution); control accuracy ±5%; set range 21–60% (configurable)
• Heating time: ≤50 min; temperature variability ≤0.5℃; uniformity ≤0.8℃ (horizontal)
• Packing size / Gross weight: 1150×800×1600 mm; 190 kg

Alarms & safety

• Power failure, fan, sensor, deviation and over‑temperature alarms
• Water tank placement error and water shortage alarms
• System diagnostics: MCU communication errors, A/D conversion failures
• Environmental noise in baby compartment ≤55 dB(A)

Models & configuration
Available types: Type I+, Type I, Type II, Type III, Type IV. Common options include LCD display, bed/skin temperature control, humidity and oxygen control (depending on type), cabinet and height‑adjustable stand where specified.
